The goal when measuring your jamb for our exterior iron single doors with thermal break and top window is to get the measurement from the outermost finishing of your exterior (stucco, brick, concrete, wood, etc.) to the face of the drywall inside. To get this measurement, make sure that you're including all parts of the building materials and the finishings.

Single Iron Doors with Top Window & Thermal Break

Arch Top Single Iron Doors with Top Window & Thermal Break

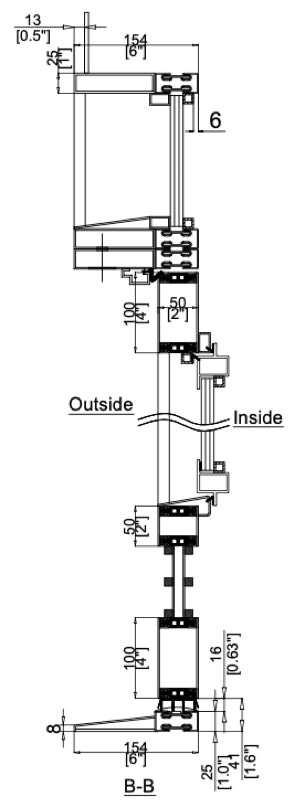

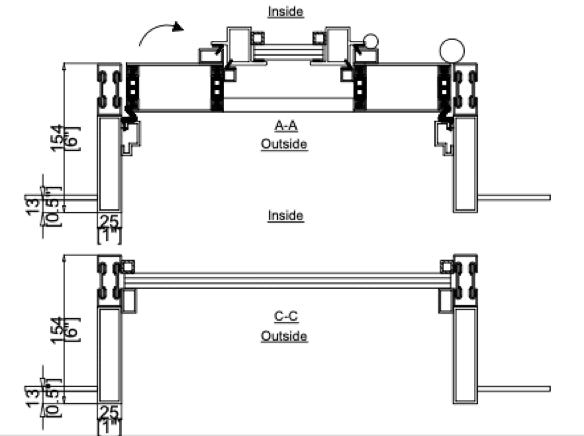

In-Swing

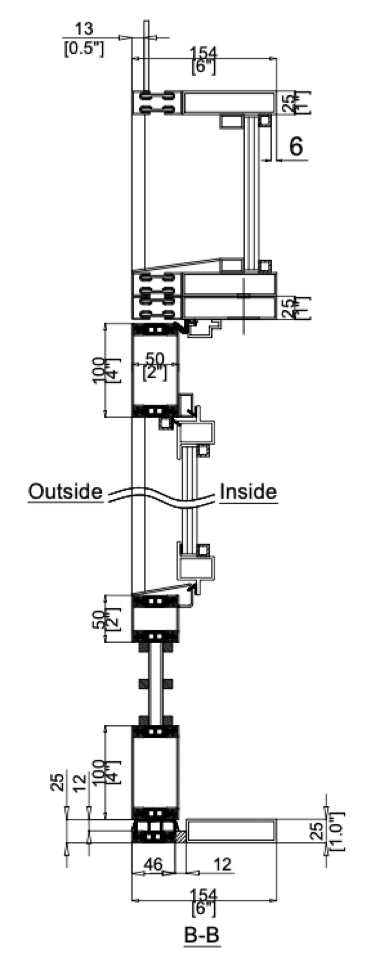

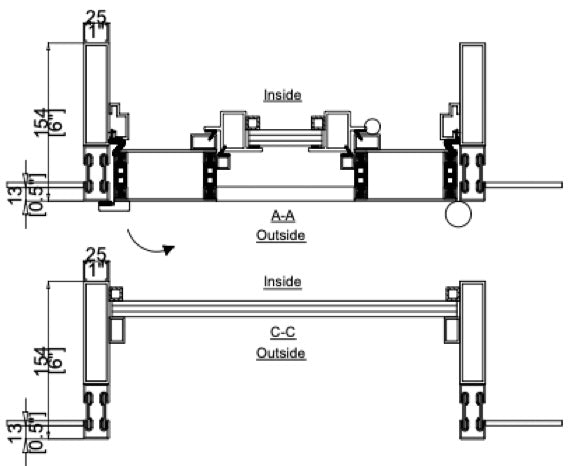

Out-Swing

These exterior iron single doors with thermal break and top windows thresholds are made from a mix of 12 gauge cold-rolled steel and Jansen thermal break materials. These thermal break models are recommended for more extreme conditions where the temperatures drop to 27 degrees Fahrenheit or below.

These exterior iron single doors with thermal break and top windows are pre-hung and include both the doors, fully assembled frame, and top window (packaged separately for ease of transport and installation). The jamb size is measured at 6” deep (net size) and made from a mix of 12 gauge cold-rolled steel and Jansen thermal break materials. Custom jamb sizes are available via our made to order section.

An inherent characteristic of steel is it’s high thermal conductivity. In colder climates, standard steel doors struggle to prevent cold transfer from penetrating to the interior of the home, causing the door to “sweat” and a layer of condensation to buildup on the interior when introduced to heat. These thermal break models include a carbon-like thermal barrier made to interrupt this transfer of cold, preventing the cold air from penetrating to the interior of your home, resulting in a more energy efficient product.

We recommend these thermal break models for more extreme conditions where the temperatures drop below 27 degrees Fahrenheit.

Strike plates, which are typically included when purchasing a lockset, are the plates that receive the throws of the latch and deadbolt and secure your door in place. All of these exterior iron single doors with thermal break and top windows come with laser cut strike plate openings on the frame of the door, and feature pre-drilled and pre-tapped holes for machine screws.

These exterior iron single doors with thermal break and top windows come standard with machined decorative bullet hinges. These hinges are a bit larger than our Air Door hinges to accommodate the additional weight of these iron doors. The frame will have the bottom portion of the hinges welded on (Hinge and male pin). The top receiving portion of the hinge will be welded onto each door leaf, and include a screwed in grease fitting, allowing you to maintain and grease the hinges regularly via a standard grease gun.

One copper crush washer per hinge is included and required prior to hanging the door onto the frame. These washers protect the hinges by introducing a softer copper metal between the 2 hinge components in order to absorb the friction and allow the doors to swing smoothly. This hinge system is far superior to ball bearing systems, as the bearings are made of stainless steel, which is a harder metal inside a steel barrel, causing ware to both components and sagging over time.

These exterior iron single doors with thermal break and top windows feature operable glass panels. To open the glass panel, simply rotate the round cam locks in a counter clockwise motion and move them to the side.This feature allows you to ventilate your space without requiring the door to be opened.

An astragal is the welded component on the door that provides a seal preventing exterior elements such as air and light from penetrating into the home. These iron exterior single doors with thermal break and top windows come equipped with an astragal when ordering an outswing version of the door. This astragal is welded onto the exterior of the door leaf, and seals against the frame when in the closed position.

These iron exterior single doors with thermal break and top windows come standard with dual foam weather stripping, which comes pre-installed around the entire frame of the door, as well as down the full length of the center astragal. This full suite of weather stripping acts as a barrier from outdoor elements and helps prevent cold or hot air from leaking out of the home, resulting in a much more energy efficient product.

These iron exterior single doors with thermal break and top windows come with pre-installed rubber door sweeps at the bottom of the door leaf. These door sweeps create a tight seal between the threshold and the door leafs themselves, preventing outside elements from entering your home. This simple yet effective feature helps insulate your space, improving energy efficiency.

These iron exterior single doors with thermal break and top windows come filled with a polyurethane foam core, which acts as a sound deadening material, and also provides some insulating properties for better energy efficiency. The foam also helps prevent moisture from accumulating inside the steel tubes, contributing to the door's longevity.

These iron exterior single door with thermal break and top window models feature a welded 3” nailer fin around the frame of the door, and is designed to be installed from the exterior of your space. This nailer fin is inset to allow for a 1/2” of finish work on the exterior of your home, and includes pre-drilled holes around the entire face of the fin.

These iron exterior single door with thermal break and top window leafs come standard at 2 1/8” thick, providing both security and durability. Keep this thickness in mind when sourcing locks, as some locks will not be compatible with a 2 1/8” thick door without the inclusion of a thick door kit (based on lock manufacturer's availability).

Steel doors offer many more enhanced security features when compared to their wood, fiberglass, vinyl, or aluminum counterparts. These iron exterior single doors with thermal break top windows are made with a mix of 12 gauge cold-rolled steel and Jansen thermal break materials, which includes a galvanized protectant to help prevent rust and corrosion. These thermal break door models feature a carbon-like thermal barrier that is used to interrupt this transfer of cold, preventing the cold air from penetrating to the interior of your home, resulting in a more energy efficient product.

Most of the decorative ironwork is made up of hot-rolled pickets that are hand crafted by our blacksmith artisans, while a few designs, such as our ‘DNA’ Door, are laser cut.

How do I measure my jamb?

The goal is to get the measurement from the outermost finishing of your exterior (stucco, brick, concrete, wood, etc) to the face of the interior drywall.

How thick are your exterior iron single doors with thermal break and top window jambs?

These exterior iron single door with thermal break and top window jambs come standard at 6” thick. Custom jamb sizes are available via our made to order section.

Is the jamb the same thing as the frame?

The jamb refers to the vertical components of the overall door frame. The jamb size refers to the thickness of those vertical components.

How does the frame mount to the wall?

These iron exterior single doors with thermal break and top windows feature a welded 3” nailer fin around the frame of the door, and is designed to be installed from the exterior of your space. This nailer fin is inset to allow for 1/2” of finish work on the exterior of your home, and includes pre-drilled holes around the entire face of the fin.

Is the jamb included with the door?

Yes, the jamb is a component of the frame, which is made specifically for the door that it is packaged with.

Is the jamb/frame galvanized or zinc coated?

Yes, these exterior iron single doors with thermal break and top windows jambs and frames are treated with a galvanized protectant to help prevent rust and corrosion.

How is the jamb insulated?

We use a polyurethane foam filling in our exterior iron single door with thermal break and top window jambs for sound deadening purposes, which also provides some insulating properties. These thermal break models also include a carbon thermal barrier that is used to interrupt this transfer of cold, preventing the cold air from penetrating to the interior of your home, resulting in a more energy efficient product for cold weather climates.
