Installation Guide - Double Doors

Please click on the button below if you would like to print the PDF instructional Guide.

Door Fit Adjustment

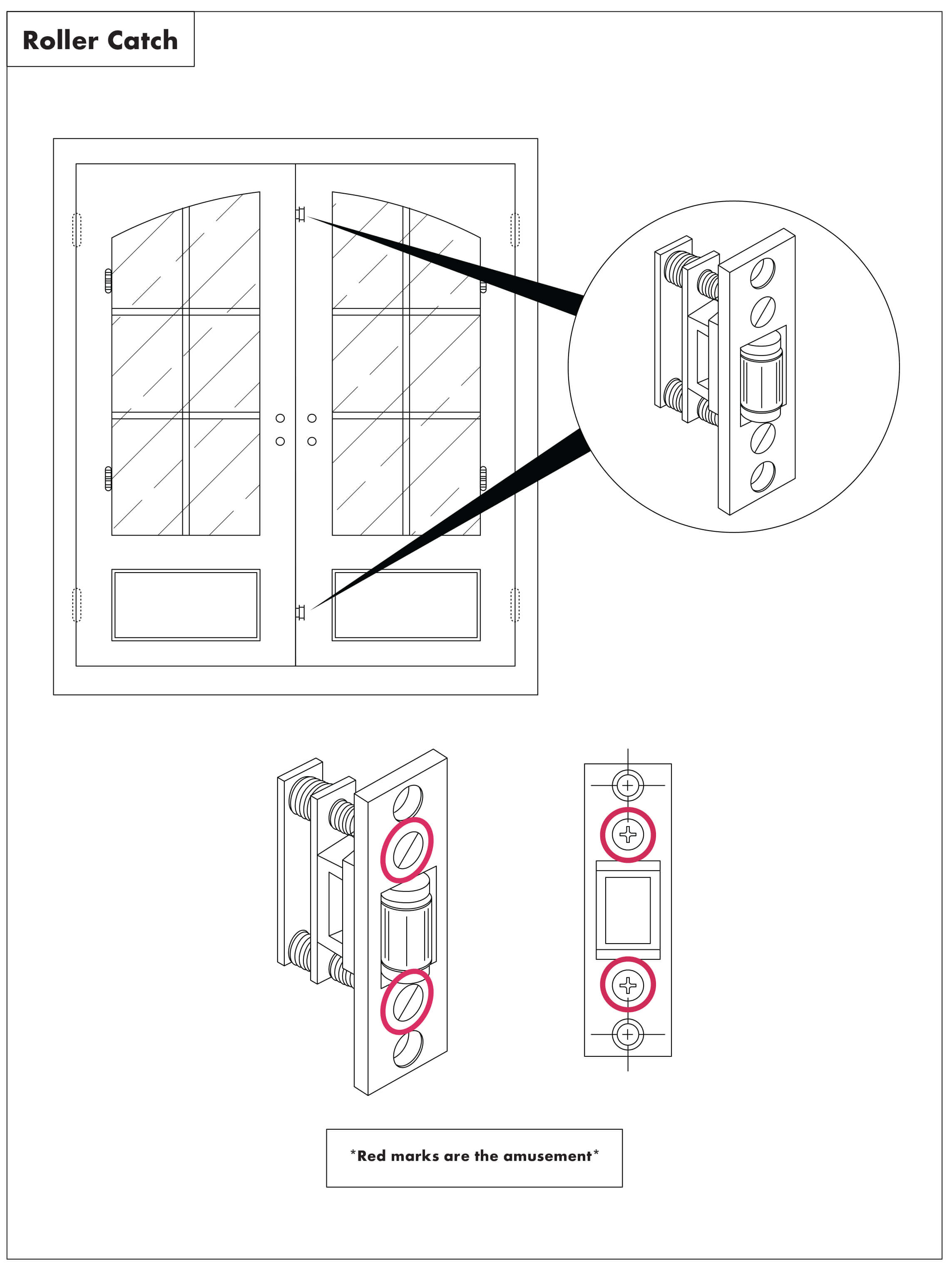

Door Fit Adjustment Make sure Circled areas are flushed Make sure Circled areas are flushed
Door Fit Adjustment

Lock Strike Plates

Filed Icon Not Filed Icon hr Line Enlarged Screws

If the door is not 100% level (And even with the door being level, the strike plate may still require some filing adjustments), the latch and deadbolt strikes will not strike correctly into the opposing strike plate. In this case, you will need to file down the opening of the strike plate in order for the latch to secure correctly.

On a wooden door, it is easy to notch out the wood to change the location of the strike plate, but because an iron door is metal, instead of cutting and welding new metal, this filing of the plate is the solution for small strike issues. Our strike areas are standard* sizes and the plat.

Please reference the diagram on the left for an example of a strike plate that has been filed vs. one that has not.

There are also times when the screw locations on the strike plates may not line up 100% perfectly with the threading on our doors. In this case, you will need to drill the holes larger to align the screw holes. The bottom left diagram shows those locations as well. *Filing adjustments may be needed depending on the lock manufacturer as they may not provide the correct size strike plate for our metal doors

Door Fit Adjustment Make sure Circled areas are flushed Make sure Circled areas are flushed Make sure Circled areas are flushed

Need Help?

If you need installation assistance, please contact us at: support@Pinkys.com or (844) 843-6677

We provide free remote support only and will not come out to job sites. If you have any installation issues or questions, please send us an email with all necessary (well-lit & quality) photos along with an explanation regarding the issue. One of our technicians will review your inquiry and guide you through email or phone.
