Cut Sheet & Rough Opening Details

Rough Opening Details

Steel Fixed Window

Fixed Window Rough Opening Details

Exterior Fixed Windows

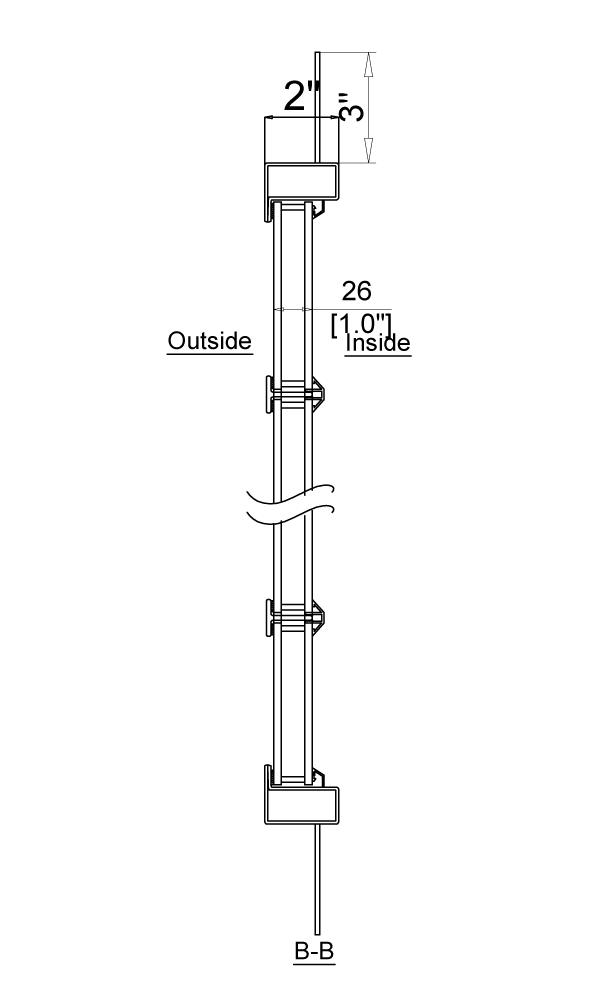

Exterior Fixed Window Cut Sheet - Side View

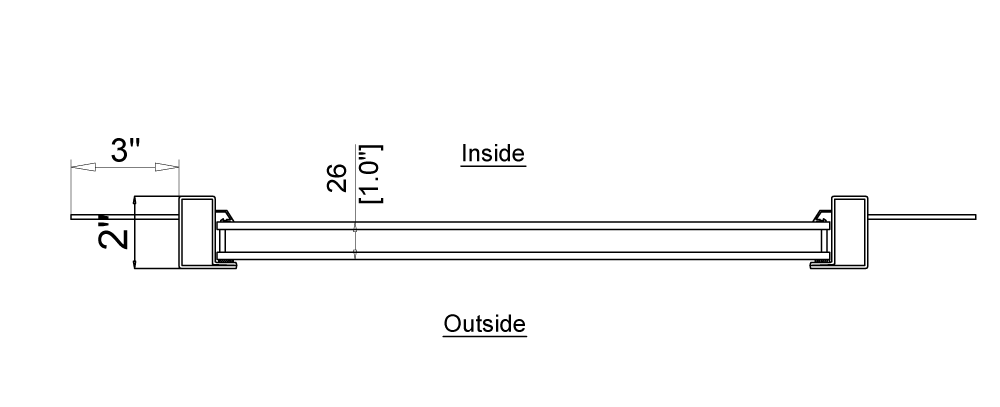

Exterior Fixed Window Cut Sheet - Top View

Specs & Materials

Frame & Jamb

While these exterior steel fixed windows do not have a separate frame, they do come standard 2” thick (net size) and are made from cold-rolled air series steel. Custom jamb sizes are available via our made to order section.

Foam

These steel exterior fixed windows come filled with a polyurethane foam core, which acts as a sound deadening material, and also provides some insulating properties for better energy efficiency. The foam also helps prevent moisture from accumulating inside the steel tubes, contributing to the door's longevity.

Closeup of unfinished steel door frame filled with foam

Nailer Fin

These steel exterior fixed windows feature a welded 3” nailer fin around the frame of the window, and is designed to be installed from the exterior of your space. This nailer fin is inset to allow for a 1/2” of finish work on the exterior of your home, and includes pre-drilled holes around the entire face of the fin.

Macro photo of window nailer fin

Metals

Steel windows offer many more enhanced security features when compared to their wood, fiberglass, vinyl, or aluminum counterparts. These steel exterior fixed windows are made with cold-rolled air series steel, which contains a galvanized mix to help prevent corrosion and rust over time.

Samples of finished steel in colors
black steel entry and patio doors for residential and commercial applications

FAQs

How thick are your exterior steel fixed window jambs?

While these exterior steel fixed windows do not have a separate frame, they do come standard 2” thick (net size)

How does the window mount to the wall?

These steel exterior fixed windows feature a welded 3” nailer fin around the frame of the window, and is designed to be installed from the exterior of your space. This nailer fin is inset to allow for a 1/2” of finish work on the exterior of your home, and includes pre-drilled holes around the entire face of the fin.

Is the jamb/frame galvanized or zinc coated?

While these steel exterior fixed windows do not have a separate jamb, the windows do contain a galvanized mix to help prevent corrosion, rust, and finish issues when exposed to damp or moist conditions over time.
