Divided Lite Glass for Custom Steel Windows & Doors

What Is Divided Lite?

Divided lite refers to a multi-pane window or door appearance: glass divided into a grid of smaller sections rather than one continuous lite. Studio Steel offers two construction methods that produce this appearance, True Divided Lite (TDL) and Simulated Divided Lite (SDL), plus the component that makes TDL possible, Push Beads.
Start A Specification
bright and airy luxury bedroom featuring full-width arch top double doors with side windows and kickplate

The right choice comes down to what matters most for the project. TDL is the authentic, historically accurate construction, built for restoration work and projects where genuine shadow lines and period-correct detailing are the priority. SDL delivers the same divided-lite appearance with lower material and labor cost, simpler long-term maintenance, and full IGU thermal performance across the glazed area.

Neither is a compromise; they're built for different priorities. See True Divided Lite (TDL) and Simulated Divided Lite (SDL) for the full case for each.

TDL vs. SDL: Construction Compared

PropertyTDLSDL
Glass constructionMultiple individually glazed panesSingle continuous IGU with applied grid
MuntinsStructural, between separate panesDecorative, applied to one pane's surface
Depth and shadow lineVisible from any distance, physical separation between panesReads as divided from a distance; the grid sits on one continuous surface
contemporary steel pocket slider door
double steel exterior doors mid-installation at new construction

Both TDL and SDL can incorporate tempered glass, laminated glass, Low-E or SB 70 coatings, and double or triple pane configurations. Not system-limited; available across the full Studio Steel lineup.

See Tempered Glass →

See Laminated Glass →

See Low-E Glass →

See SB 70 Glass →

See Glass Configurations →

Frequent Questions

A window or door glazed to look like a grid of smaller panes rather than one continuous lite. Studio Steel builds this two ways: True Divided Lite (TDL), with real physical separation between panes, and Simulated Divided Lite (SDL), with a grid applied to one continuous IGU.
TDL is True Divided Lite; SDL is Simulated Divided Lite. Both describe how the divided-pane look is achieved, not a type of glass.
TDL uses multiple individually glazed panes, physically separated by structural steel muntins. SDL applies a decorative grid to the surface of a single insulating glass unit, so the glazing itself remains one continuous piece. See the construction and performance comparison above for the full breakdown.
It depends on what matters most. TDL is the authentic, historically accurate choice for restoration work and projects where genuine shadow lines and period-correct detailing are the priority. SDL delivers the same look with lower cost, simpler maintenance, and better thermal performance. See True Divided Lite (TDL) and Simulated Divided Lite (SDL) for the full case for each.

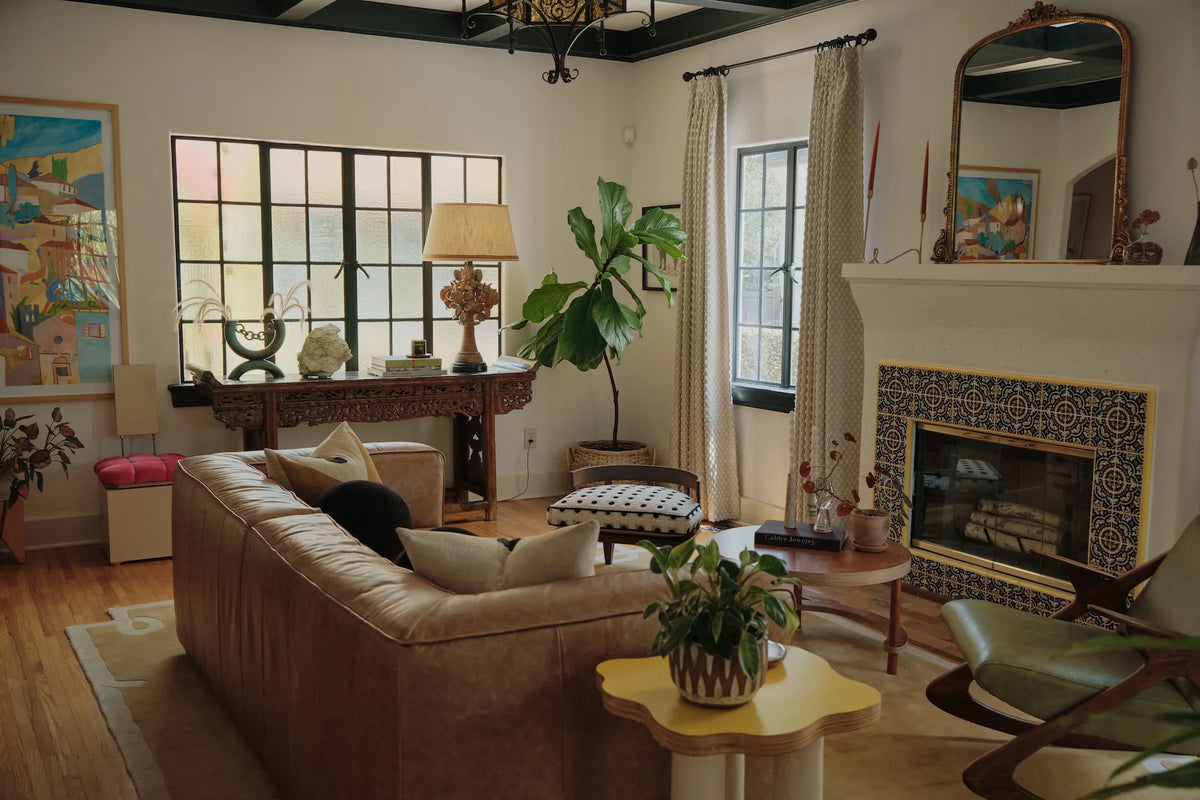

modern spanish home living room featuring double casement steel windows

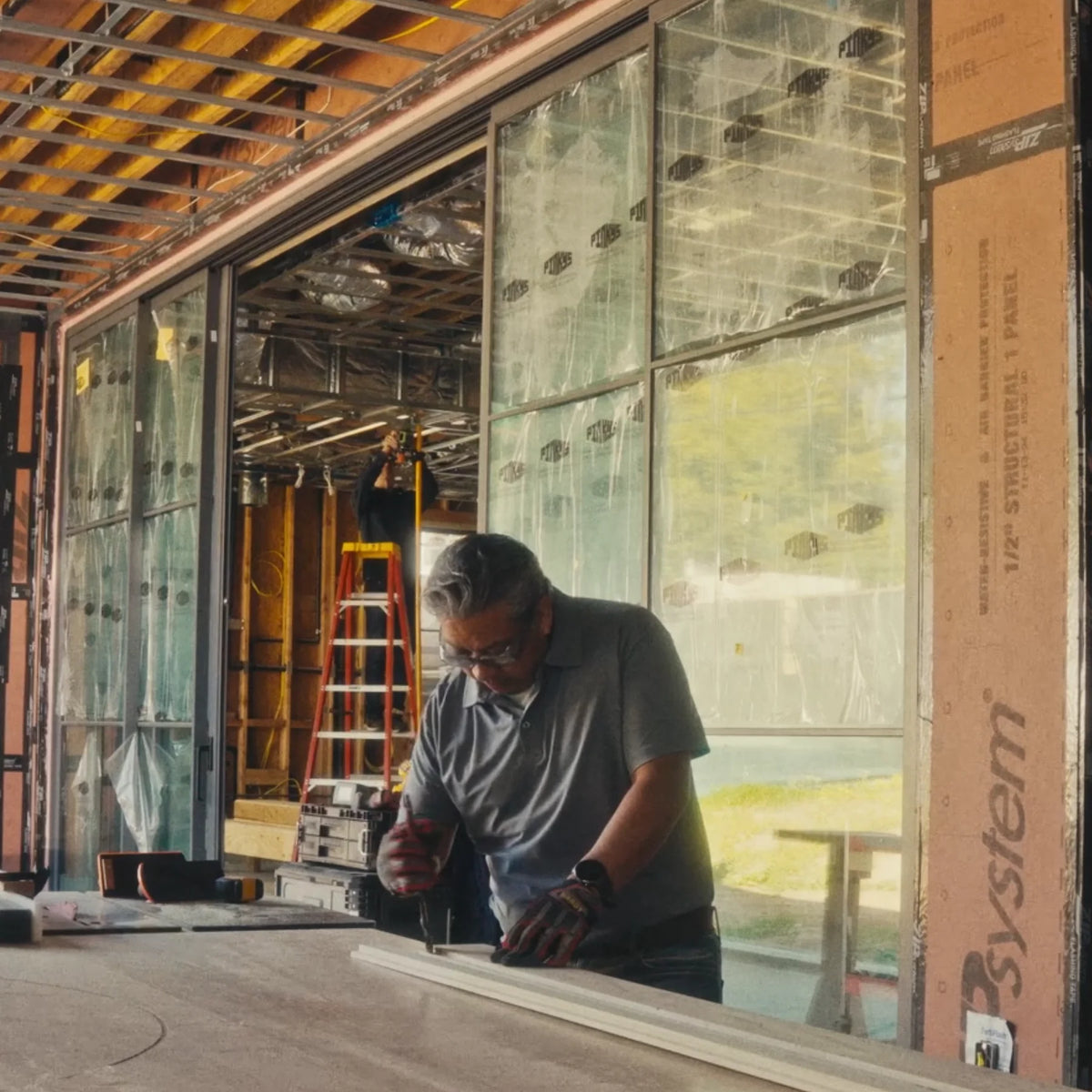

construction site where large format center split sliding steel doors are being installed

Specify With PINKYS Studio Steel

PINKYS Studio Steel's custom architectural service works with architects and design-build teams from early feasibility through fabrication and installation.

Start your specification
