Simulated Divided Lite (SDL) for Custom Steel Windows & Doors

What is Simulated Divided Lite (SDL)?

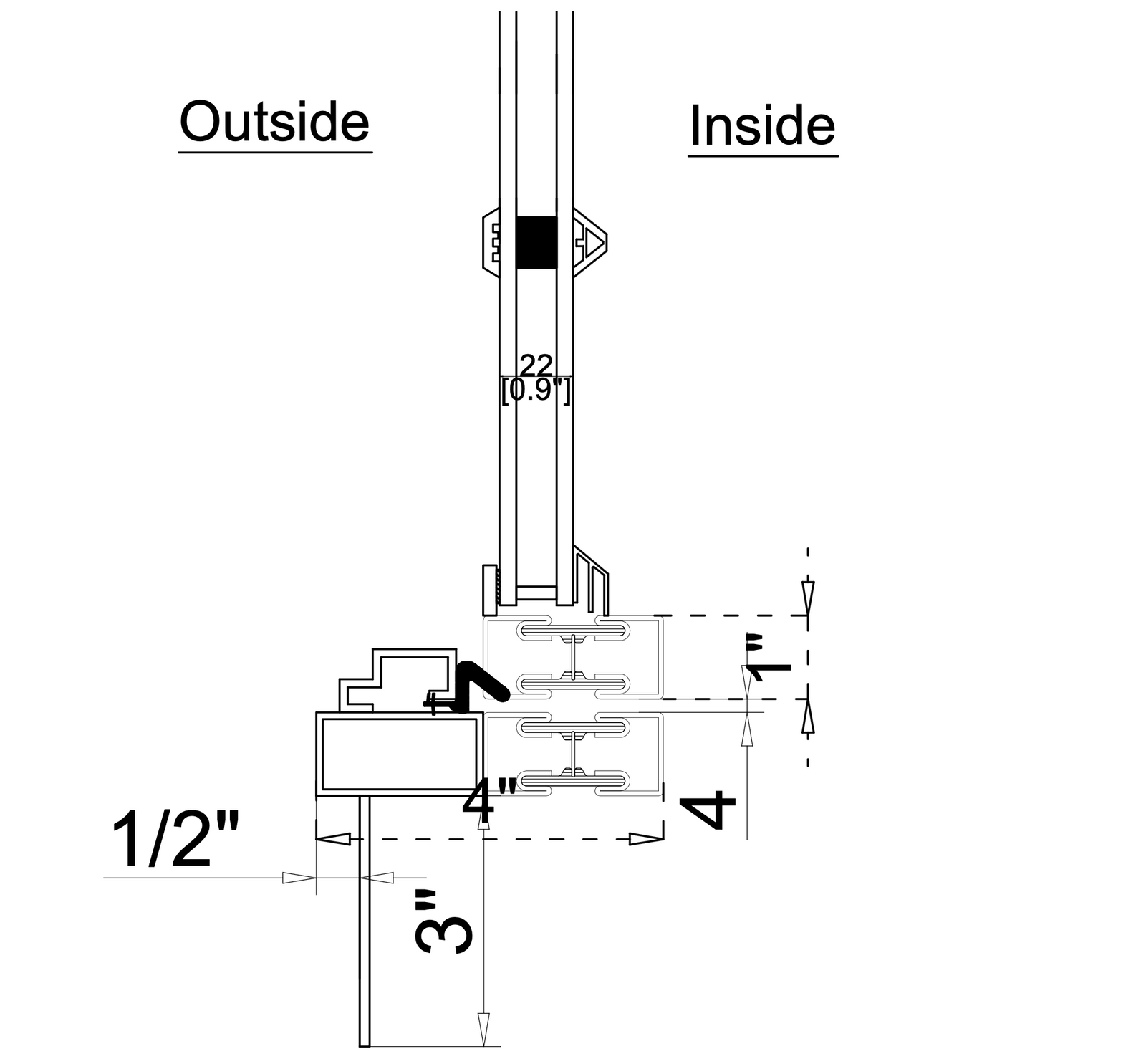

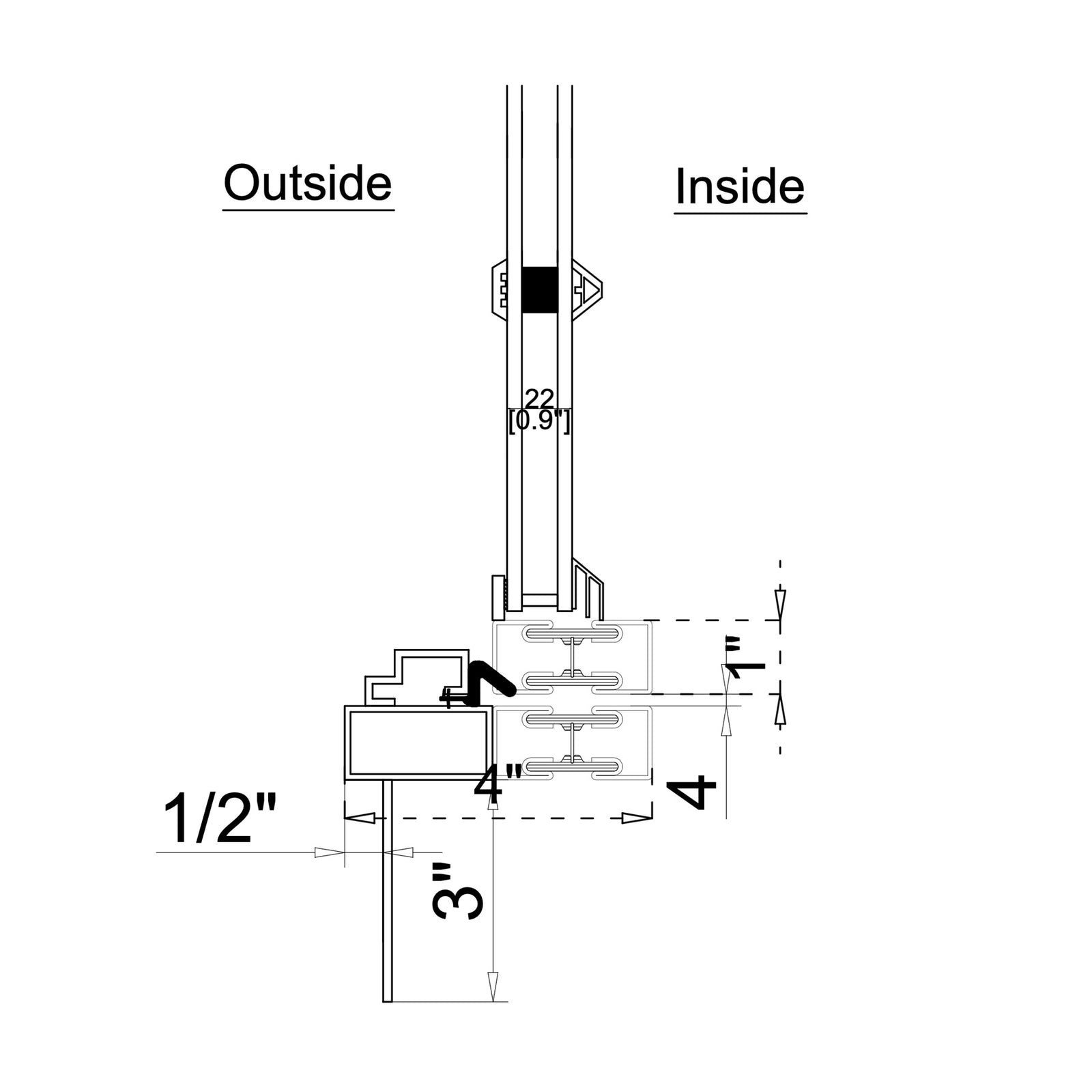

SDL applies a grid of muntin bars to the surface of a single insulating glass unit (IGU), creating the appearance of divided panes without physically separating the glass. Because the glazing is unbroken, SDL assemblies offer less interior-exterior contact and higher energy efficiency, while delivering the divided-lite look at a lower material and labor cost.
Start A Specification

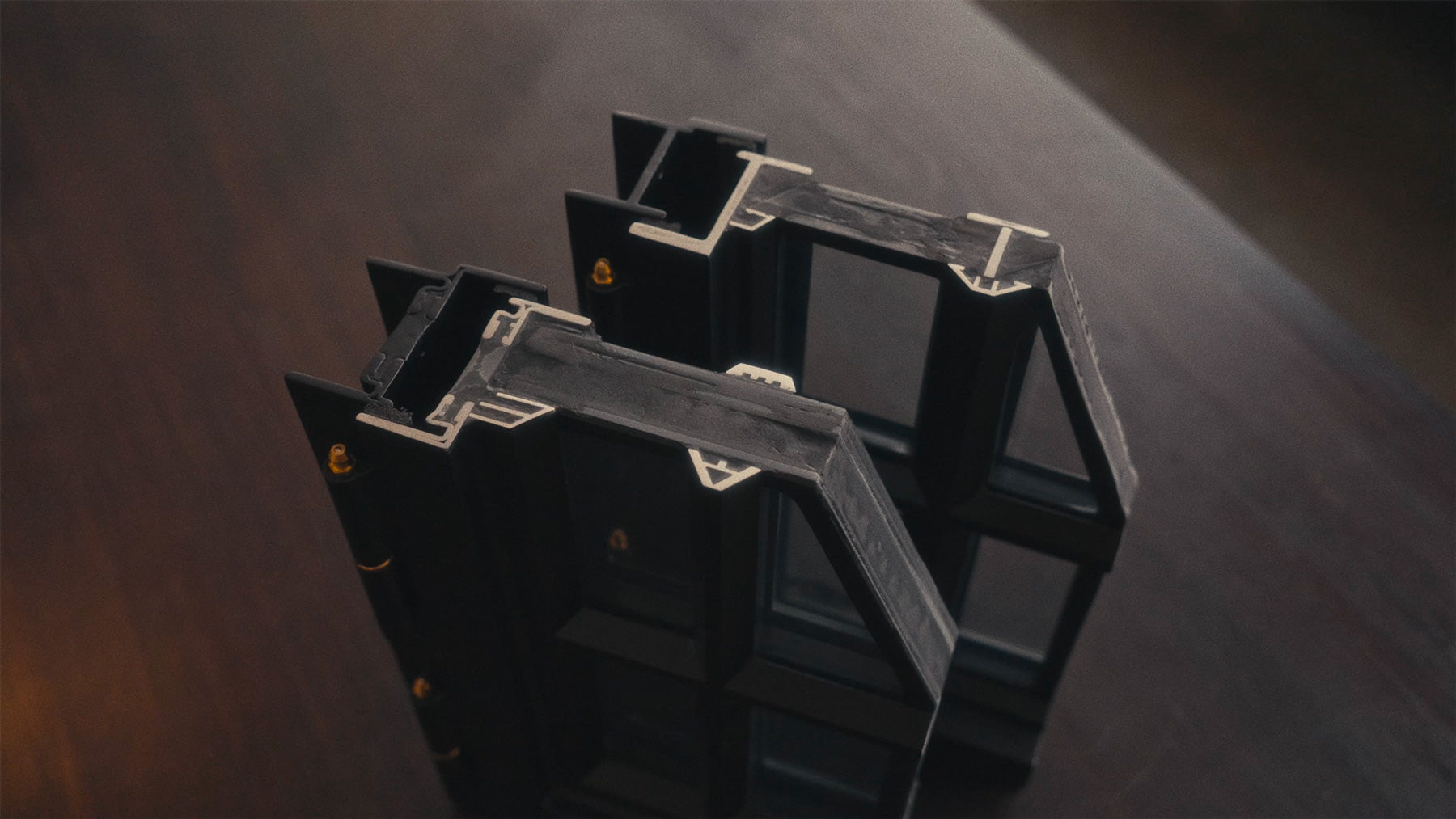

closeup of two steel window corners showing the difference between SDL and TDL

Because SDL is one continuous IGU, there's only one seal to maintain per unit instead of many. That makes construction and long-term upkeep simpler than a multi-pane assembly.

SDL offers a slightly greater degree of flexibility when it comes to grid patterns because the designer is freed from worrying about size minimums of individual panes. Discuss grid pattern and spacing with the Studio Steel team during specification to match the project's aesthetic direction.

Specialty divided-lite configurations, such as grilles between the glass panes, may be available on a project basis. Contact the Studio Steel team to discuss whether a specialty configuration fits the project.

SDL is the right call where thermal performance, budget, and maintenance simplicity are the priority, delivering the divided-lite look without the cost or upkeep of individually glazed panes. See the Divided Lite pillar for a full comparison if the project's priorities are different.

See Divided Lite →

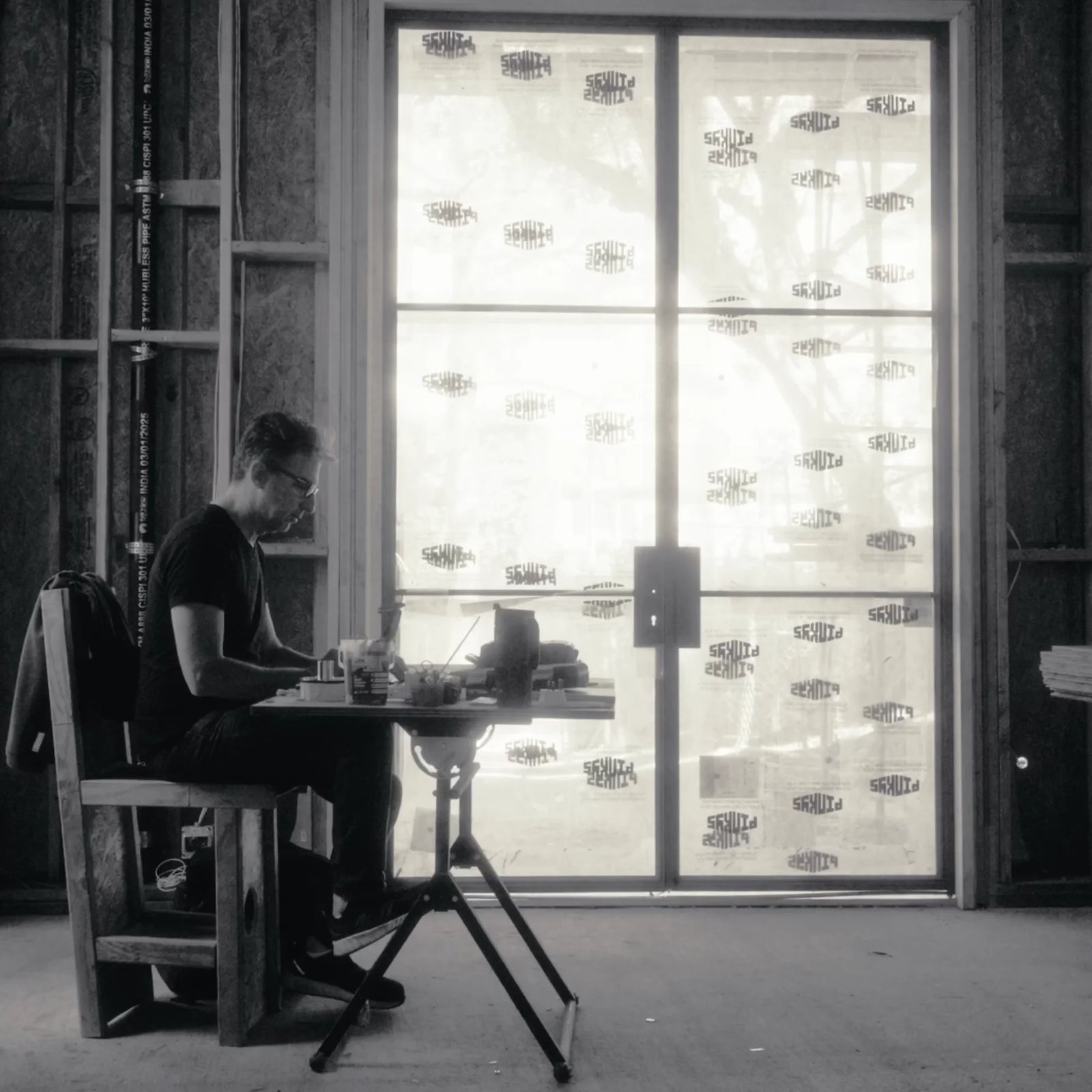

man on jobsite working to plan installation of steel dors

Frequent Questions

No, and it performs better than TDL on this measure. Because SDL retains one continuous IGU, it keeps full insulating performance across the glazed area; see the confirmed NFRC comparison on the Divided Lite pillar.
Yes. SDL's single-IGU construction costs less in materials and labor than individually glazing and sealing multiple panes.
No. Because SDL is one continuous IGU rather than separate panes, damage means replacing the full unit.
Yes. Because the grid is applied rather than structural, pattern and spacing can be adapted to the project's architectural style. Discuss grid pattern during specification with the Studio Steel team.

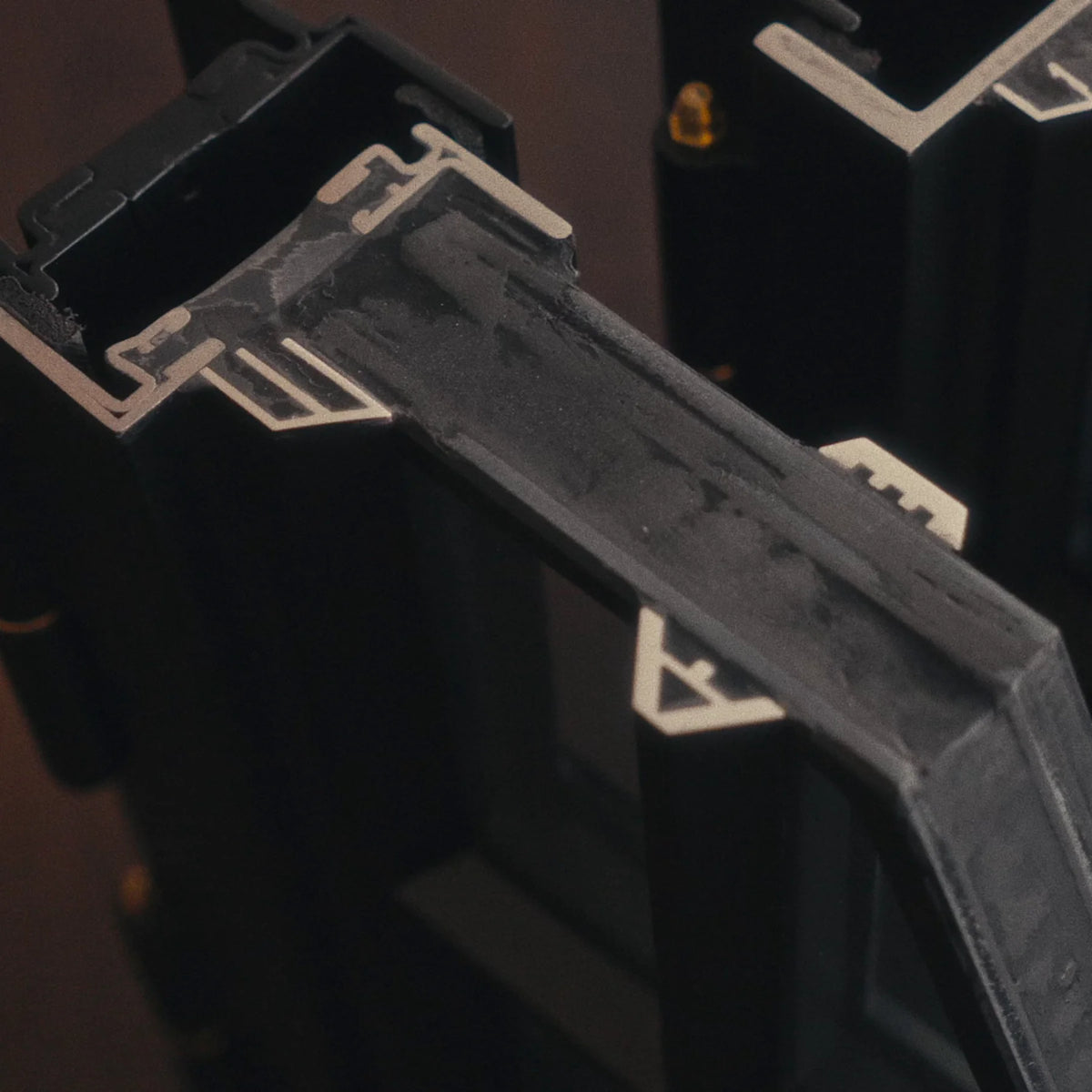

closeup of simulated divided lite detail

Specify With PINKYS Studio Steel

PINKYS Studio Steel's custom architectural service works with architects and design-build teams from early feasibility through fabrication and installation.

Start your specification
