Studio Steel · Ottostumm FerroFinestra W40
W40 is the hot-rolled system built for scale.
W40 Frame and Profile Data
Maximum unit sizing and threshold dimensions are available on request from the PINKYS Studio Steel team.
| Steel Type | Profile Thickness | Glazing Capacity | Thermal Break | Applications | Lead Time | Maximum Unit Sizing |
|---|---|---|---|---|---|---|
| Hot-rolled solid steel | 3-5 mm | Up to 31 mm unit thickness | None | Interior and Exterior | 12 - 15 weeks from approved shop drawings | Contact the PINKYS Studio Steel team |
Glazing Options Within the 31 mm Capacity
W40 accepts single glazing, dual-pane IGUs, and dual-pane glazing with a laminated lite, up to 31 mm total unit thickness. Within the solid hot-rolled range, W40 covers a broader set of IGU configurations than the W20, the choice when hot-rolled construction is required and glazing thickness is the constraint. Triple-pane glazing is not available in the W40; the W50 TB and W75 TB thermally broken systems support triple-pane where the added profile depth allows it.
| Glazing Type | Notes |
|---|---|
| Tempered single glazing | Single-pane toughened glass. Appropriate for interior applications and exterior openings where energy code compliance is not a fenestration requirement. |
| Dual pane with laminate | A dual-pane IGU with one laminated lite, bonded with an interlayer. Specified for enhanced safety, break-in resistance, and acoustic attenuation. Not available as a triple-pane build-up. Available in various PVB or SGP configurations. |
| Insulating glass unit (IGU) | Double-pane sealed unit. The deeper W40 pocket accommodates IGU configurations including low-e coated units with larger air or gas fills. Confirm the specific IGU configuration with the Studio Steel team. |
| SB70 | High-performance low-e coating available in W40 IGU configurations. Visit the glass options page for detail. |
Built for larger openings and heavier glazing.

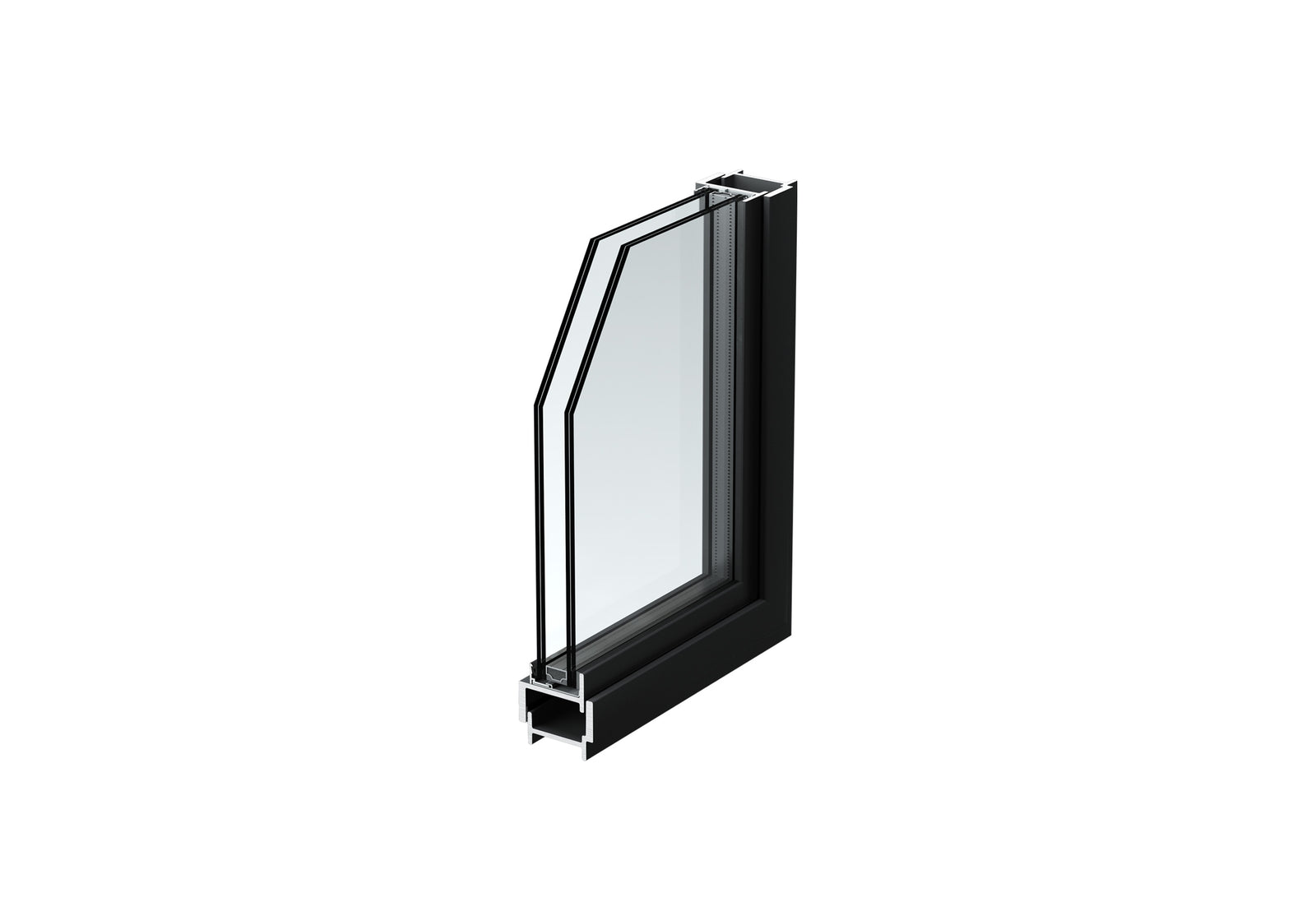

W40 comes in a complete range of thick solid-steel profiles built for strength. Where the W20 is the finer, more delicate profile, W40 carries larger openings and heavier glazing loads, still within a slim frame. Its glazing capacity covers a broader range of IGUs than the W20, handling most exterior double-pane work in a hot-rolled frame. When glazing thickness drives the selection and hot-rolled construction is required, W40 is the system within the solid-steel range.
The W40 profile is also available as the thermally broken W50 TB, which adds a high-density polyurethane thermal break and raises glazing to 38 mm with the same sightlines, for projects where energy code compliance is required.
Solid hot-rolled steel construction throughout.
W40 is hot-rolled solid steel with no thermal break, produced by the same hot-rolling technique as the W20. The process gives the same surface character: a slight variation that reads as material authenticity rather than the uniform face of a machine-formed section.

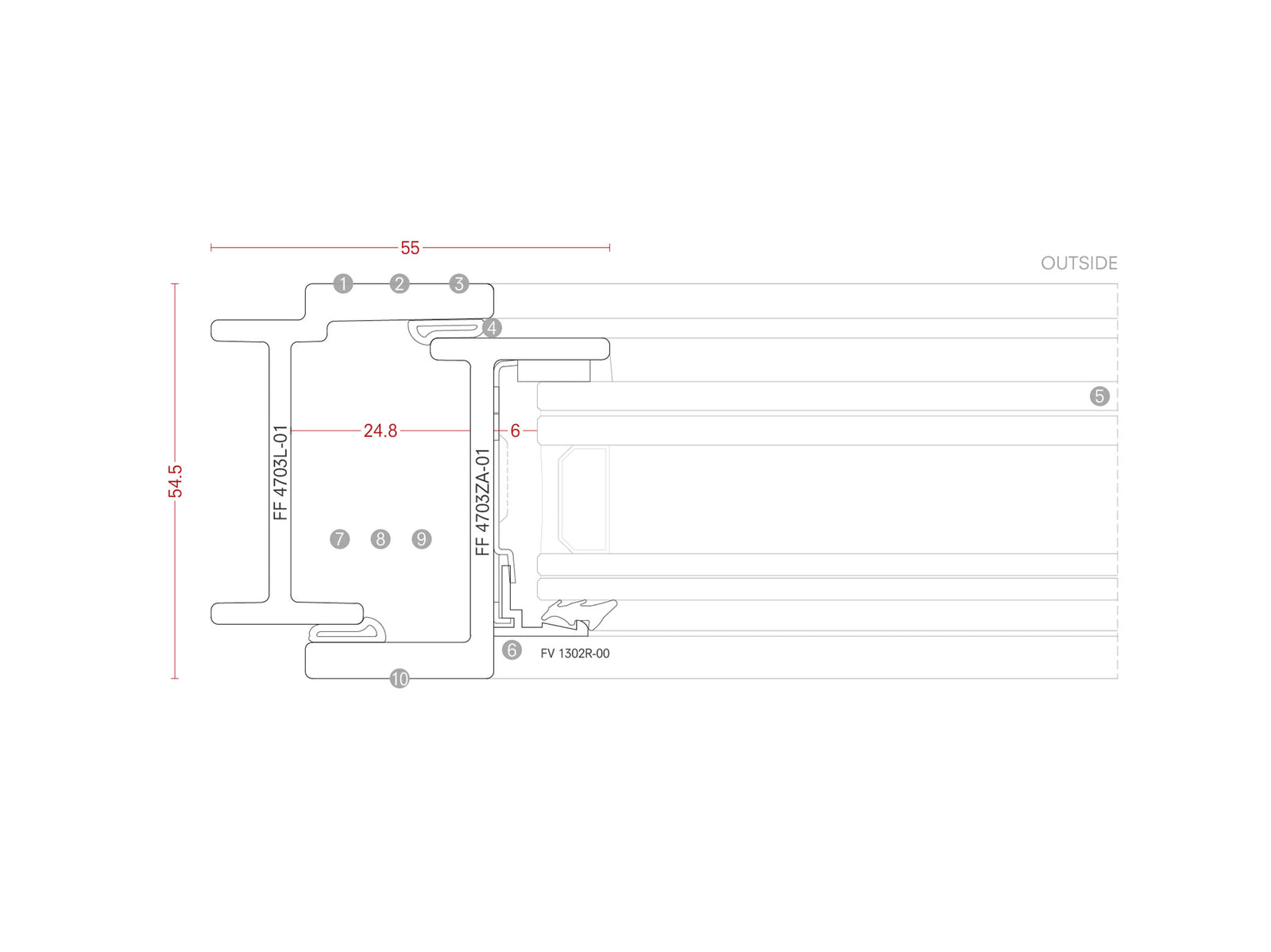

CAD drawings, hardware confirmation, glazing data.
The PINKYS Studio Steel team works through the W40 specification one on one: opening sizes, glazing configuration, hardware, and finish. PINKYS produces architecturally detailed CAD drawings for every opening.
