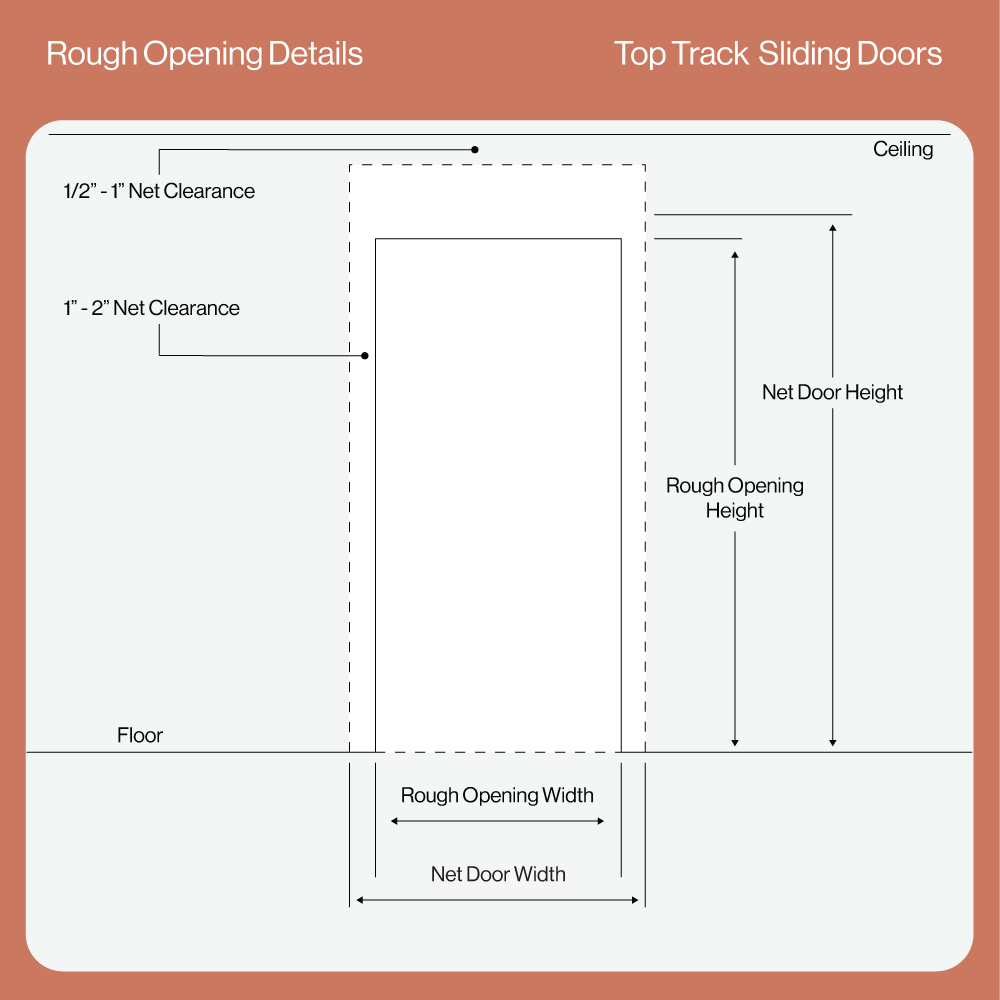

While top track sliding doors do not have a typical jamb, there are still important measurements to note for installation. The goal when measuring for these interior steel top track slider double doors is to get the measurement of the opening width you will be covering, then adding 2” - 4” for proper coverage. For the height measurement, you will need to make sure you are measuring the full height from floor to ceiling, then deducting 1/2” - 1”.

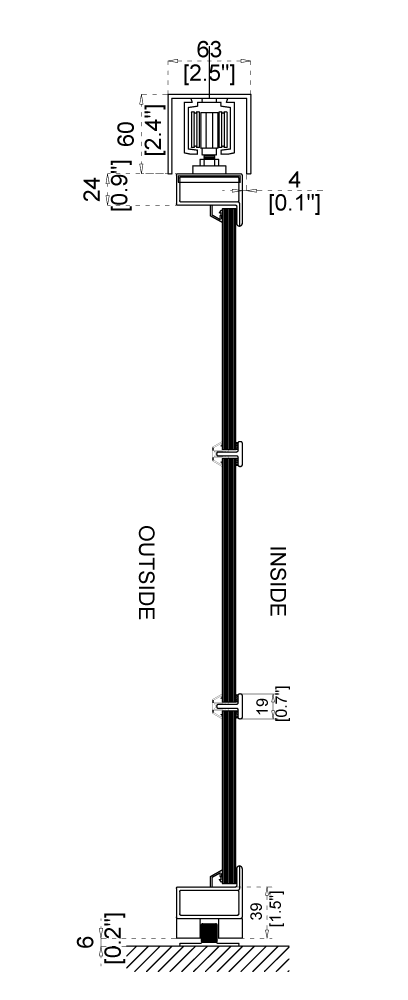

These standard interior top track sliders have a projection of 2.5” from the adjacent wall, with their top tracks being mounted directly to the ceiling. Wall mounted options are available through our custom sales team.

The length of the top track will be equal to twice the double door’s width, extending a single door panel’s width on the side the door slides open. Please ensure you have sufficient space along the face of the wall to operate the sliding of the door panel.

Top Track Sliding Doors

These interior steel top track double slider doors include the doors, top track, and all necessary sliding hardware.

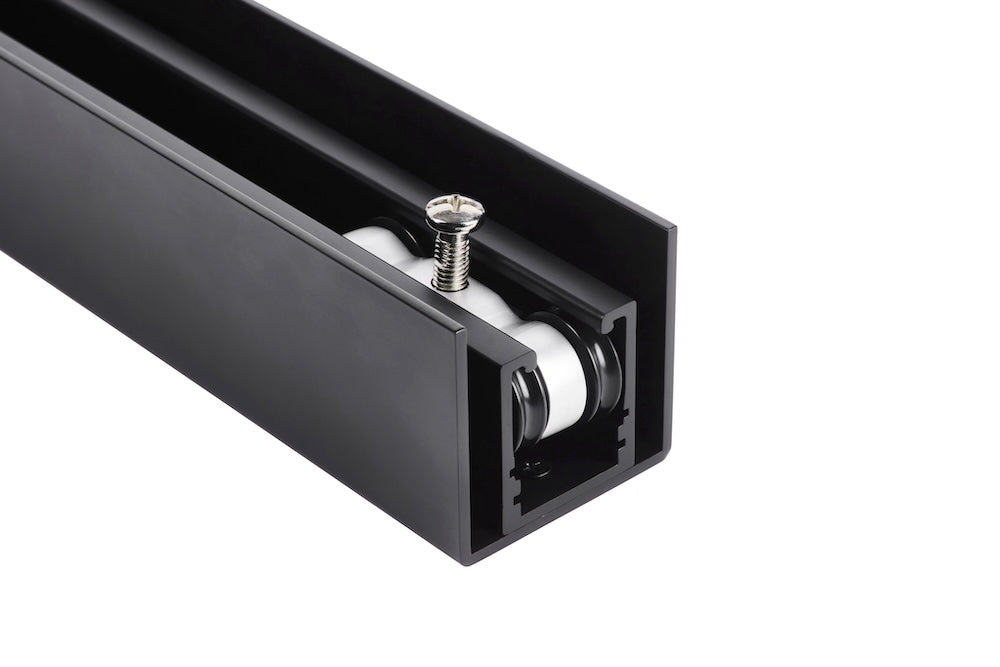

The rollers install to the top of the doors, which include pre-drilled and pre-tapped holes for ease of installation. Floor-mounted pins are used to guide the bottom of the doors in alignment with the upper track.

These steel interior top track double slider doors are made with cold-rolled air series steel, creating a durable, long lasting product with a modern aesthetic.

How do I measure my interior steel top track double slider doors?

While top track sliding doors do not have a typical jamb, there are still important measurements to note for installation. The goal when measuring for these interior steel top track slider double doors is to get the measurement of the opening width you will be covering, then adding 2” - 4” for proper coverage. For the height measurement, you will need to make sure you are measuring the full height from floor to ceiling, then deducting 1/2” - 1”.

These standard interior top track sliders have a projection of 2.5” from the adjacent wall, with their top tracks being mounted directly to the ceiling. Wall mounted options are available through our custom sales team.

The length of the top track will be equal to twice the double door’s width, extending a single door panel’s width on the side the door slides open. Please ensure you have sufficient space along the face of the wall to operate the sliding of the door panel.

How thick are your interior steel top track double slider doors?

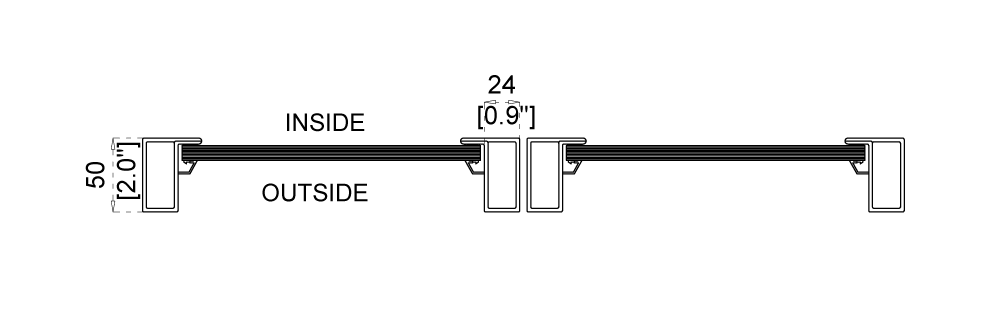

These interior steel top track double slider doors come standard at 2” thick

How do you mount this track?

These interior steel top track slider double door tracks have a bolt through design to bolt the track directly to the ceiling. Wall mounted options are available through our custom sales team.

Is the track and sliding hardware included with the door?

Yes, these interior top track double slider doors include the door, track, as well as all required top track sliding hardware.
