The goal when measuring your jamb for our interior steel double doors with side windows is to get the measurement from the outermost finishings of your walls (drywall, trim, etc.). To get this measurement, make sure that you're including all parts of the building materials and the finishings.

Flat Top Double Doors

Arch Top Double Doors

In-Swing

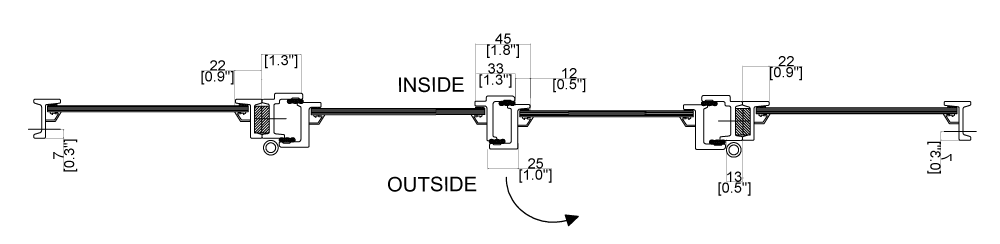

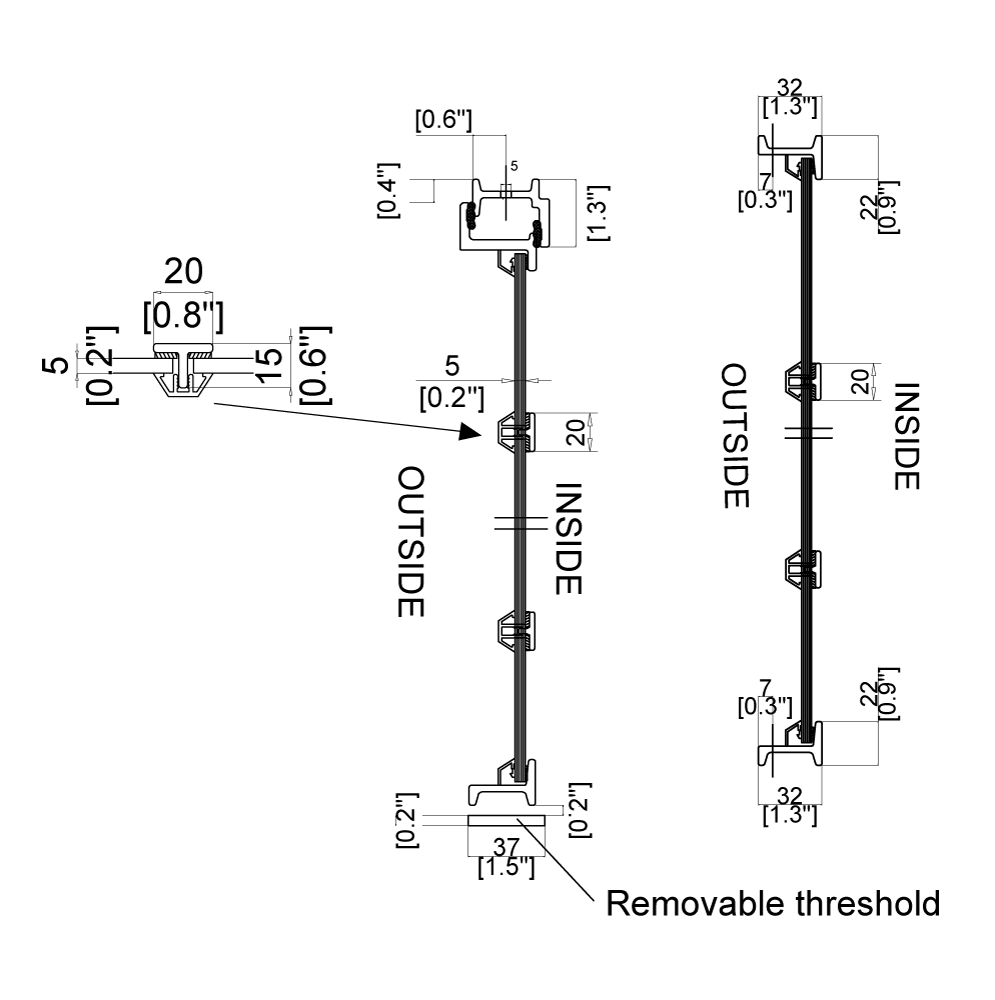

Out-Swing

In-Swing

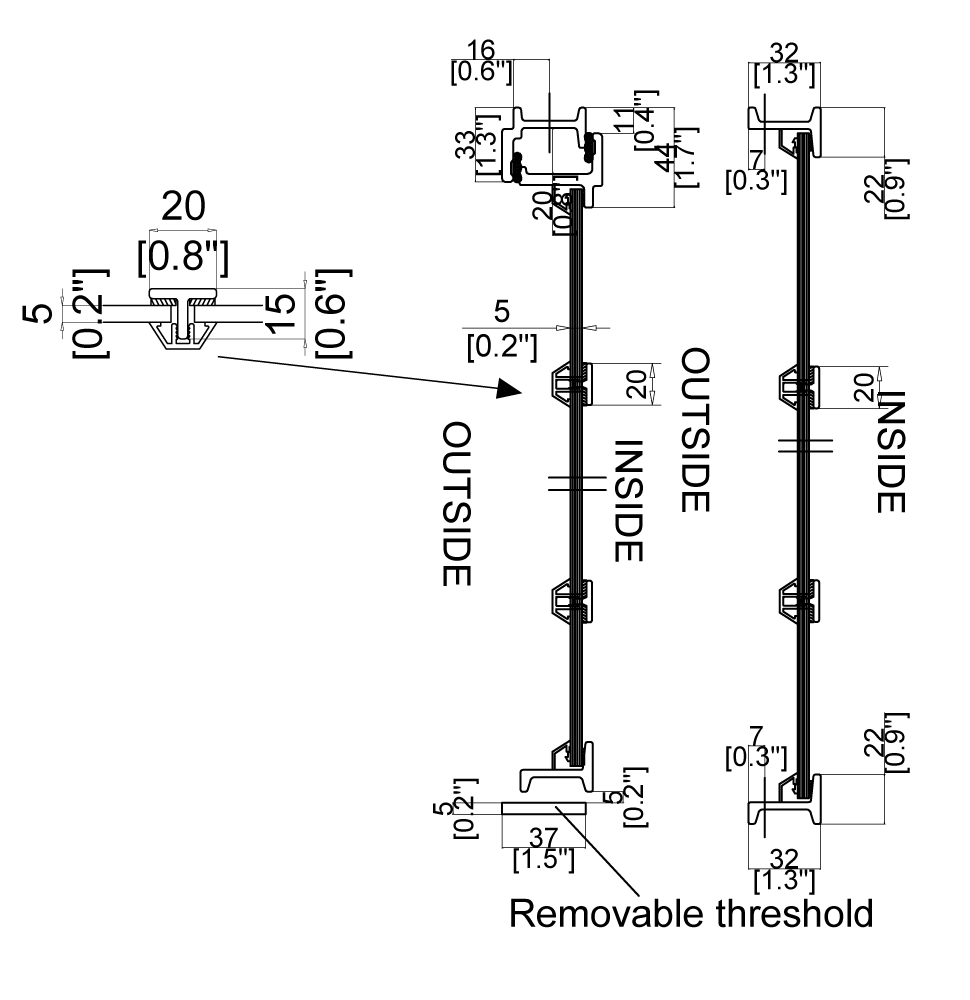

These interior steel double doors with side windows feature a removable flatbar threshold. This threshold is not required, and can be easily removed to allow a seamless transition between rooms.

These interior steel double doors with side windows are pre-hung and include the doors, fully assembled frame, and side windows (each packaged separately for ease of transport and installation). The jamb size is measured at 1.5” and made from Ottostumm hot rolled solid steel.

These interior doors come with pre-installed 5mm thick tempered glass, with the exception of Frost glass, which will be dual pane tempered glass. Different glass thickness options are available via request with our custom sales team.

Strike plates, which are typically included when purchasing a lockset, are the plates that receive the throws of the latch and deadbolt and secure your door in place. All of these interior steel double doors with side windows come with laser cut strike plate openings on the dummy leaf door, and feature pre-drilled and pre-tapped holes for machine screws. (Standard in stock interior steel double doors with side windows will have a single bore hole / strike plate cutout for passage hardware. Double bore holes are available via our made to order section).

These interior steel double doors with side windows are equipped with flush bolts installed on both the top and bottom of the inactive dummy leaf door. When engaged, these flush bolts will secure the dummy leaf door into the frame. On taller doors, we use a longer rod on the upper flush bolt for ease of access. When disengaged, both doors can fully open, allowing larger items like furniture to pass through more easily, while also creating a more open concept when entertaining guests.

These interior steel double doors with side windows come standard with modern bullet hinges. The frame will have the bottom portion of the hinges welded on (Hinge and male pin). The top receiving portion of the hinge will be welded onto each door leaf, and include a screwed in grease fitting, allowing you to maintain and grease the hinges regularly via a standard grease gun.

One copper crush washer per hinge is included and required prior to hanging the door onto the frame. These washers protect the hinges by introducing a softer copper metal between the 2 hinge components in order to absorb the friction and allow the doors to swing smoothly. This hinge system is far superior to ball bearing systems, as the bearings are made of stainless steel, which is a harder metal inside a steel barrel, causing ware to both components and sagging over time.

These standard steel interior double door with side windows frame’s feature a bolt-through design. Pre-drilled holes along the frame’s perimeter allow for versatile mounting options within the rough opening of various framing materials.

These pre-drilled holes also allow you to take advantage of our modular interior door system. This system enables you to create full or partial wall partitions by pairing the door with one or more of our interior side windows.

These standard steel interior double door with side windows leafs come standard at 1.46” thick, providing both security and durability. Keep this thickness in mind when sourcing locks, as lock manufacturers notate a range of thickness that each lock is compatible with.

Steel doors offer many more enhanced security features when compared to their wood, fiberglass, vinyl, or aluminum counterparts. These standard steel interior double doors with side windows are made with Ottostumm hot rolled solid steel, drawing inspiration from 20th century design characteristics, with a modern twist. Ottostumm materials are known for their durability and sleek profile, allowing for a wide range of creativity that works in any application. This slim jamb size gives you the ability to mount these interior doors in any position within the jamb in order to achieve the look and feel you are going for.

How do I measure my interior steel double door with wide windows jamb?

The goal is to get the measurement from the outermost finishing of the exterior side wall (drywall, trim, etc.) to the face of the interior side wall.

Why is your jamb so slim compared to other interior steel doors?

This is where we set ourself apart. By using the highest quality materials sourced from different parts of the world, we are able to dial in the aesthetic that is PINKYS. Ottostumm materials are known for their durability and sleek profile, allowing for a wide range of creativity that works in any application. This slim jamb size gives you the ability to mount these interior steel double doors with side windows in any position within the jamb in order to achieve the look and feel you are going for.

How thick are your interior steel double door with side windows jambs?

These interior steel double door with side windows jambs come standard at 1.5” thick.

Is the jamb the same thing as the frame?

The jamb refers to the vertical components of the overall door frame. The jamb size refers to the thickness of those vertical components.

How does the frame mount to the wall?

These standard steel interior double door with side windows frames feature a bolt-through design. Pre-drilled holes along the frame’s perimeter allow for versatile mounting options within the rough opening of various framing materials.

Is the jamb included with the door?

Yes, the jamb is a component of the frame, which is made specifically for the door that it is packaged with.
