How to Measure - Rough Opening
To measure your rough opening, you will need the width & height measurements from stud to stud, horizontally and vertically. Rough opening measurements can be obtained as described below.
Width: Measure from the inside of the left stud to the inside of the right stud. Subtract 1" from this number to get the width of your new PINKYS window.
EX: 36.5" (width measurement) - 1" = 35.5" PINKYS window width
Height: Measure from the inside of the bottom stud to the inside of the header's stud. Subtract 1" from this number to get the height of your new PINKYS window.
EX: 60.5" (height measurement) - 1" = 59.5" PINKYS window height
You could also input these rough opening measurements into our What Size is Right for Me? calculator located in PINKYS Information Center

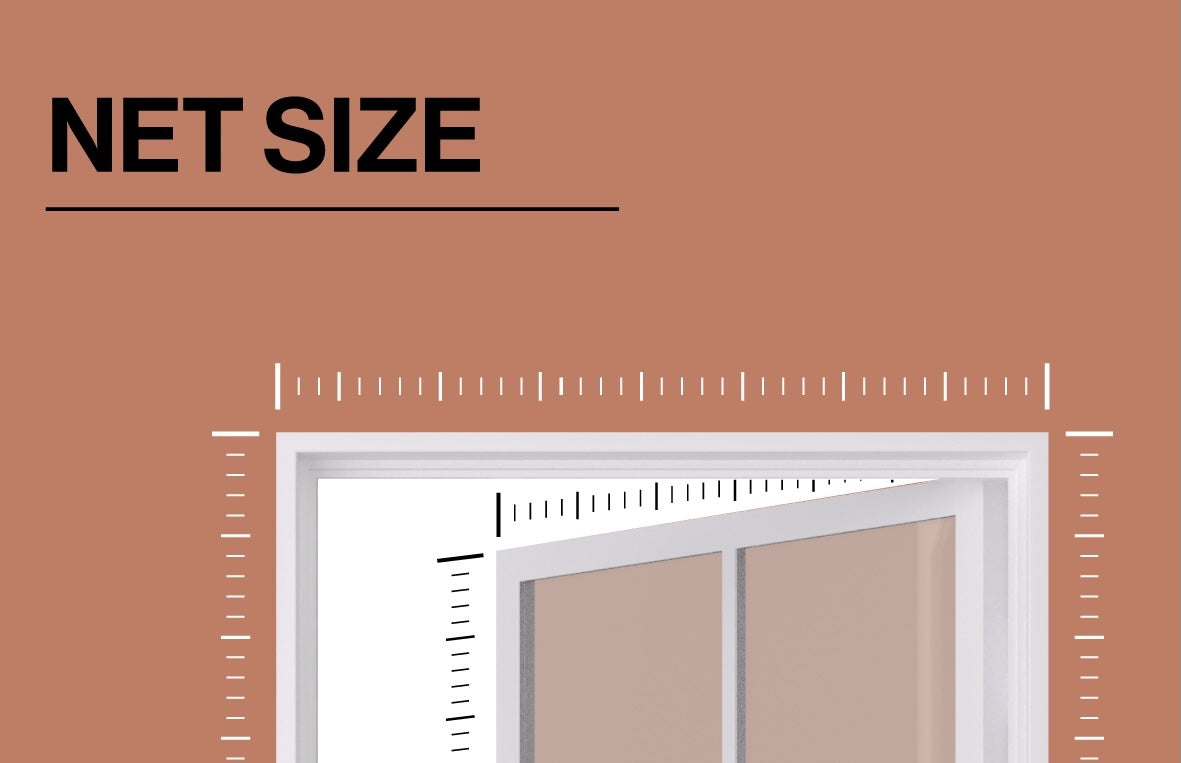

What Does Net Size Mean?
When ordering a new PINKYS window, it is important to note that all of our windows are pre-hung, meaning they include the window slab(s), frame, and hinges required for the door to operate.
The sizing displayed includes the dimensions of this pre-hung frame, which is known as the overall unit's net size.

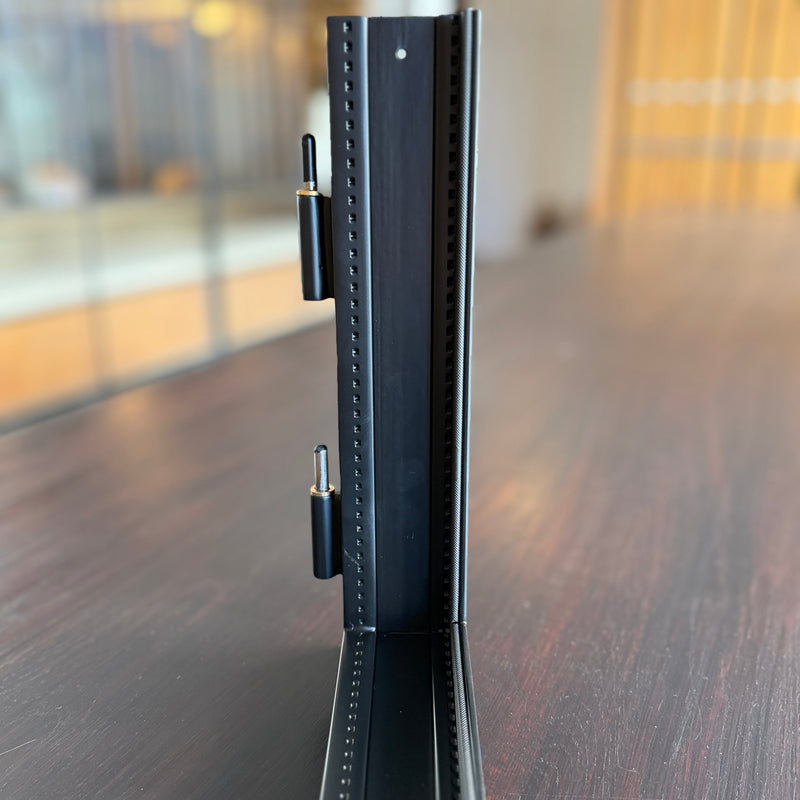

What is Jamb Size?
Jamb size refers to the depth of the window's jamb and frame, which correlates directly with the depth of the wall in which your door will be installed.
All of our standard exterior casement windows are built with 1.5" jambs, and feature a 3" nailer fin around the entire frame of the window itself, creating a tight seal to keep exterior elements out.
If your wall is thicker than 1.5", you can choose to install your window with either an interior or exterior wall reveal.
If your specific application requires a bolt through or different installation method (for example if you are installing into a brick or stone wall), please contact our custom sales team so we could accommodate your request.
Understanding Window Thickness
Below, you'll find our standard window thicknesses for our exterior casement windows.
PINKYS Exterior Casement Window Thickness
Exterior Casement Windows: 1.5" Thickness
Exterior Casement Windows with Thermal Break: 2.5" Thickness
*Please note that custom made casement windows may differ in window thickness. Please consult your PINKYS sales representative for more details.
Approximate Weights
Below are some of our most common sizes of exterior windows, along with their corresponding approximate weights:
18” x 36” = 59 LBS
23.5” x 29.5” = 63 LBS
23.5” x 35.5” = 75 LBS
23.5” x 47.5” = 101 LBS
27.5” x 47.5” = 118 LBS
29.5” x 59.5” = 158 LBS
35.5” x 53.5” = 171 LBS
47.5’ x 35.5” = 152 LBS
47.5” x 59.5” = 255 LBS
59.5” x 47.5” = 255 LBS
71.5” x 47.5” = 307 LBS
95.5” x 47.5” = 410 LBS
119.5” x 59.5” = 642 LBS
FAQs
Can I get a size that is not listed here?
Yes! We’re happy to make a fully custom window for you in the exact size that you’re looking for. Under the Made To Order section, you can type in the exact size window your project requires.
*Please note that all sizes are in terms of net size, including the windows frame.
Will PINKYS come and measure my window?
Unfortunately we do not do home visits, however we do have the information needed for you or a contractor to make the correct measurements needed.
Do I need a contractor to measure for me?
No, you do not, however some people are more comfortable having their contractor make the measurement. Please refer back the “How to measure” video or writing in the “Size” section if this informational pop-up.
Is there an install guide for this?
Yes! We have video guides explaining each and every step of the process, as well as a full installation guide. The videos and the pdf will be provided to you with your window on easy to scan QR codes on our packaging.
