When investing in steel windows and exterior doors, precision is everything—especially when it comes to hardware compatibility. At PINKYS Iron Doors, every product is engineered with industry-standard measurements to ensure smooth installation and long-term performance.
Understanding specifications like bore hole size, backset, and center-to-center measurements is essential when selecting the right lockset. Whether you're a homeowner, contractor, or designer, knowing these details helps avoid costly mistakes and ensures your steel door functions exactly as intended.
Why Steel Window and Door Hardware Measurements Matter
Steel windows and doors are known for their strength, security, and modern design, but even the highest-quality door can underperform if the hardware is not properly aligned.
Incorrect measurements can lead to misaligned locks and handles, improper latch engagement, installation complications, and reduced security and functionality.
By understanding standard specifications, you ensure your steel door hardware fits seamlessly and performs reliably.
What Is a Bore Hole in Steel Doors?
A bore hole is the pre-drilled circular opening in a door where the lockset and handle hardware are installed. This measurement determines whether your chosen hardware will physically fit into the door.
Standard Bore Hole Size for Exterior Doors
For standard exterior doors at PINKYS Iron Doors, the bore hole diameter is 2 1/8 inches. This is the industry standard, making it compatible with most residential locksets on the market.
Choosing the correct bore hole size ensures easy installation, proper hardware alignment, and long-lasting performance.
Understanding Backset Measurements
The backset refers to the distance from the edge of the door to the center of the bore hole. This measurement determines how far your handle and lock sit from the door’s edge.
Standard Backset for Steel Exterior Doors
For exterior doors, the standard backset is 2 3/4 inches. This measurement is commonly used in premium steel doors, offering a balanced appearance while supporting heavy-duty hardware.
Why Backset Matters
Backset plays a critical role in ensuring the latch aligns properly with the strike plate, affecting how the door opens and closes while also influencing the overall look of the hardware placement.
Center-to-Center Measurement Explained

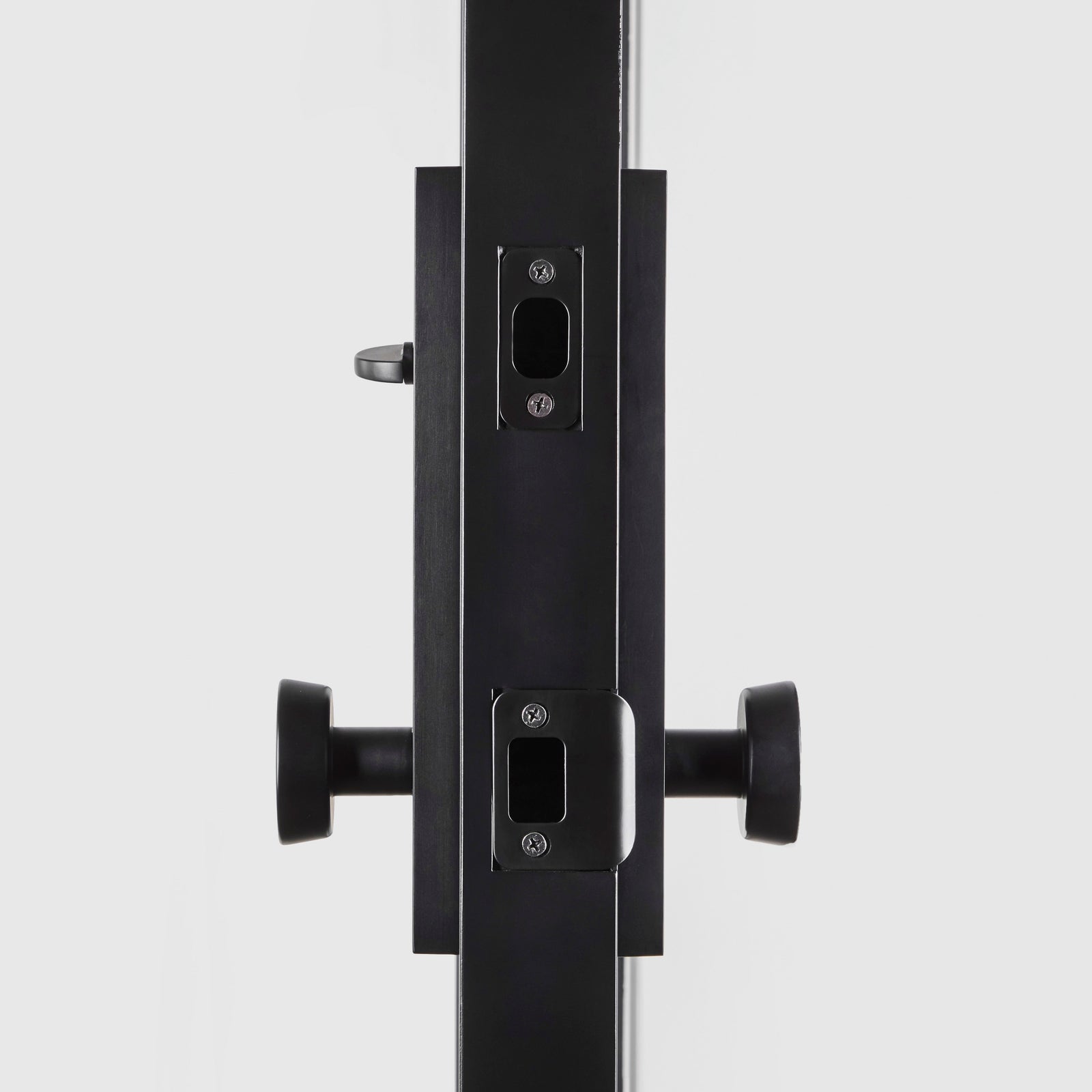

The center-to-center measurement is the vertical distance between the center of the handle bore hole and the center of the deadbolt bore hole.
Standard Center-to-Center Measurement
For exterior doors, the standard center-to-center measurement is 5 1/2 inches. This spacing is essential when installing a handleset with a separate deadbolt, ensuring both components align and operate smoothly.
Why This Measurement Is Important
This measurement prevents misalignment between the handle and deadbolt, ensures compatibility with combination locksets, and maintains a clean, professional appearance.
Designed for Compatibility and Ease
All standard exterior doors from PINKYS Iron Doors are built using these precise measurements to ensure compatibility with most modern locksets. This makes selecting hardware simple and efficient, whether upgrading an existing door or installing a new one.
Doors with Different Configurations
Some door styles feature unique bore hole and hardware layouts, including Dutch doors, center split bifold doors, interior doors, and pivot doors. For these styles, it is important to review the specific product specifications before purchasing hardware.
Choosing the Right Lockset for Your Steel Door
When selecting a lockset, it is important to confirm that all measurements align with your door specifications. The bore hole should measure 2 1/8 inches, the backset should be 2 3/4 inches, and the center-to-center spacing should be 5 1/2 inches.
Most high-quality locksets are designed around these standards, making it easy to find options that complement both the style and security of your steel door.
Elevate Your Home with Steel Windows and Doors
Steel windows and doors are more than just functional—they are a defining design feature in modern homes. Known for their slim profiles, durability, and timeless appeal, they bring both beauty and performance to any space.
Ensuring proper hardware fit is a key part of maximizing that performance. With the right measurements and compatible locksets, your door will not only look exceptional but function flawlessly for years to come.
Final Thoughts
Attention to detail is what ensures a seamless installation. With standard measurements of a 2 1/8 inch bore hole, a 2 3/4 inch backset, and a 5 1/2 inch center-to-center spacing, PINKYS Iron Doors provides a reliable foundation for pairing your door with the right hardware.
Understanding these specifications helps prevent installation issues, saves time, and ensures a polished, professional result every time.
