The goal when measuring your jamb for our interior steel single pantry doors is to get the measurement from the outermost finishings of your walls (drywall, trim, etc.). To get this measurement, make sure that you're including all parts of the building materials and the finishings.

Flat Top Single Doors

Arch Top Single Doors

In-Swing

These interior steel single pantry doors feature a removable flatbar threshold. This threshold is not required, and can be easily removed to allow a seamless transition between rooms.

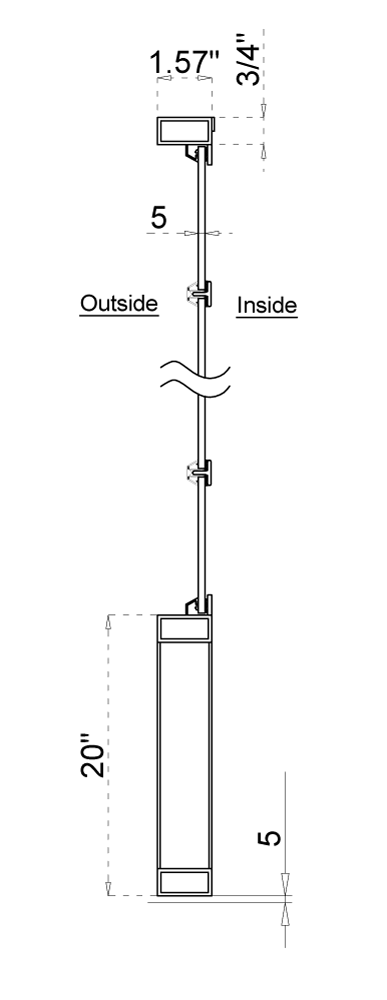

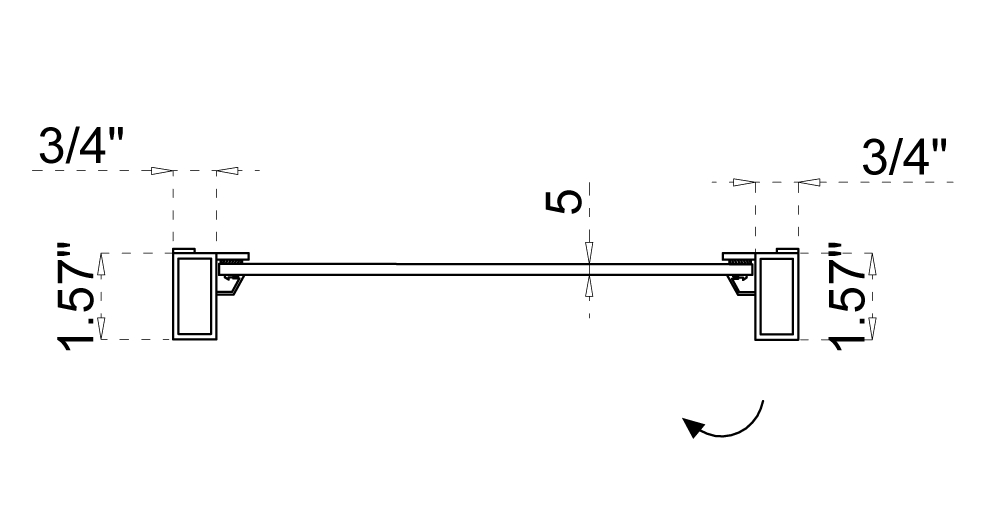

These interior steel single pantry doors are pre-hung and include both the door and fully assembled frame. The jamb size is measured at 1.57” and made from cold rolled steel.

These interior steel single pantry doors come with pre-installed 5mm thick tempered glass, with the exception of Frost glass, which will be dual pane tempered glass. Different glass thickness options are available via request with our custom sales team.

These interior steel single pantry doors come standard with modern bullet hinges. The frame will have the bottom portion of the hinges welded on (Hinge and male pin). The top receiving portion of the hinge will be welded onto each door leaf, and include a screwed in grease fitting, allowing you to maintain and grease the hinges regularly via a standard grease gun.

One copper crush washer per hinge is included and required prior to hanging the door onto the frame. These washers protect the hinges by introducing a softer copper metal between the 2 hinge components in order to absorb the friction and allow the doors to swing smoothly. This hinge system is far superior to ball bearing systems, as the bearings are made of stainless steel, which is a harder metal inside a steel barrel, causing wear to both components and sagging over time.

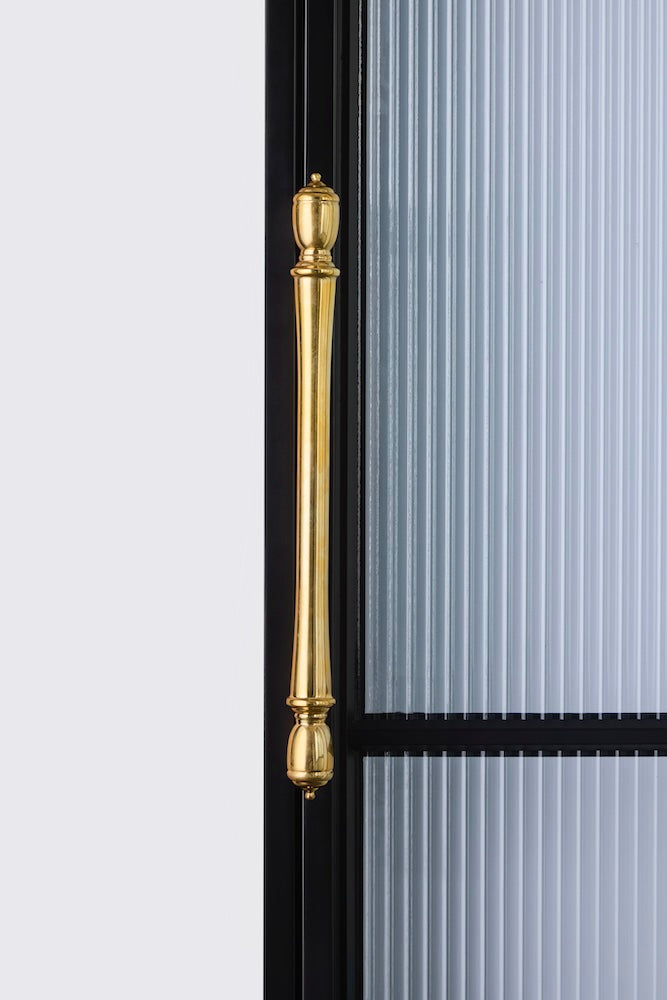

These interior steel single pantry doors are sold without hardware by design, allowing you the flexibility to source hardware that compliments your existing cabinet pulls or knobs. Pull hardware is available by request via our custom sales team.

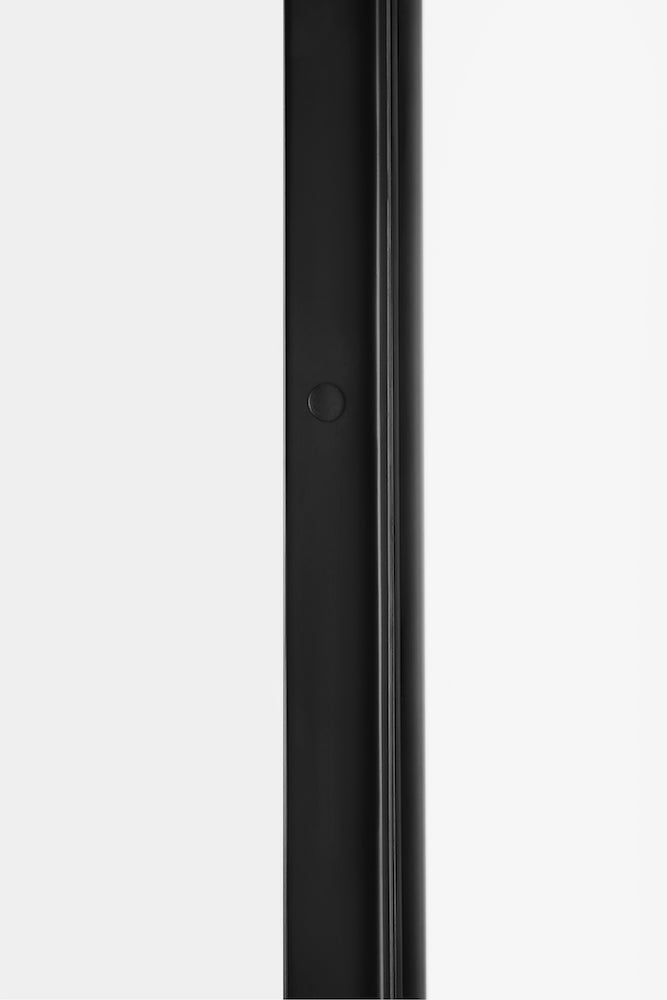

These steel interior single pantry door frames feature a bolt-through design. Pre-drilled holes along the frame’s perimeter allow for versatile mounting options within the rough opening of various framing materials.

These steel interior pantry doors are made with cold-rolled air series steel, creating a durable, long lasting product with a slim, modern aesthetic.

How do I measure my interior steel single pantry door jamb?

The goal is to get the measurement from the outermost finishing of the exterior side wall (drywall, trim, etc.) to the face of the interior side wall.

How thick are your interior steel single pantry door jambs?

These interior steel single pantry door jambs come standard at 1.57” thick.

Is the jamb the same thing as the frame?

The jamb refers to the vertical components of the overall door frame. The jamb size refers to the thickness of those vertical components.

How does the frame mount to the wall?

These steel interior single pantry doors feature a bolt-through design. Pre-drilled holes along the frames perimeter allow for versatile mounting options within the rough opening of various framing materials.

Is the jamb included with the door?

Yes, the jamb is a component of the frame, which is made specifically for the door that it is packaged with.
