If you would like to add a digital smart lock to your new PINKYS exterior door, you have the ability to mix and match our PINKYS Lever hardware to achieve this.

Single Doors

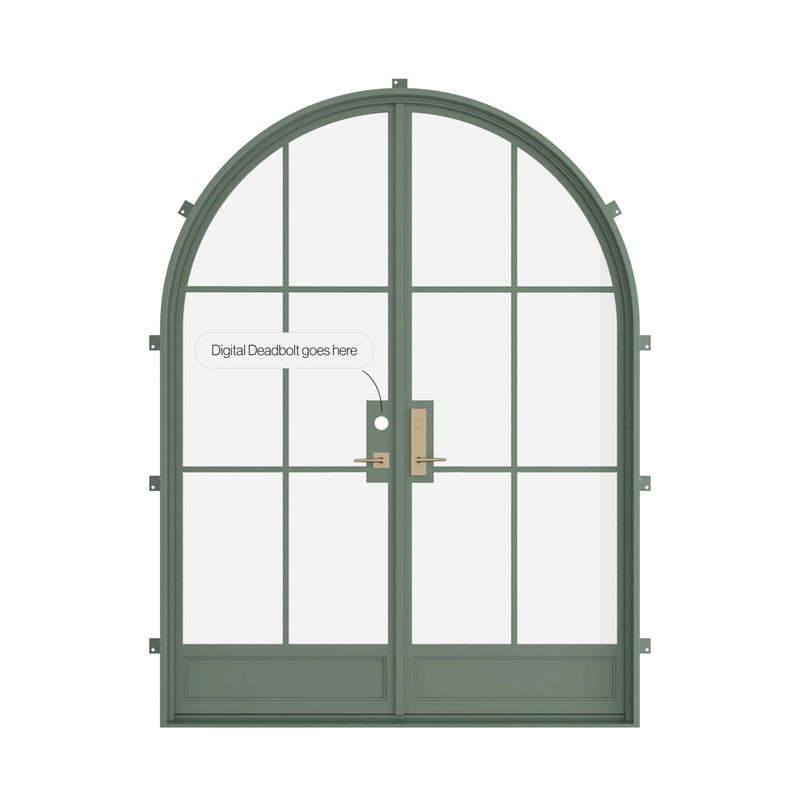

On a single door, you will need to purchase a PINKYS Passage Lever for the bottom bore hole, and supply your own digital deadbolt for the upper bore hole. Depending on your specific PINKYS door design, you will need to make sure that your digital lock will physically fit on the backplate of the door itself.

Double Doors

On a double door, you will need to purchase a PINKYS Passage Lever for the bottom bore hole on the active panel, as well as a single door version of our PINKYS LOCK w/ Lever (full plate model) for the inactive panel, supplying your own digital deadbolt for the upper bore hole on the active panel. Depending on your specific PINKYS door design, you will need to make sure that your digital lock will physically fit on the backplate of the door itself.

Digital Smart Lock Specs

For the specs of your supplied smart lock, you will need to verify with the manufacturer that it will fit the below specs...

• Bore Hole Size: 2 1/8”
• Backset: 2 3/4” (2 3/8" for dutch doors)
• Door Thickness: 2" (2 1/8" for thermal doors)
