PINKYS Locks come standard with the Kwikset KW1 keyway.

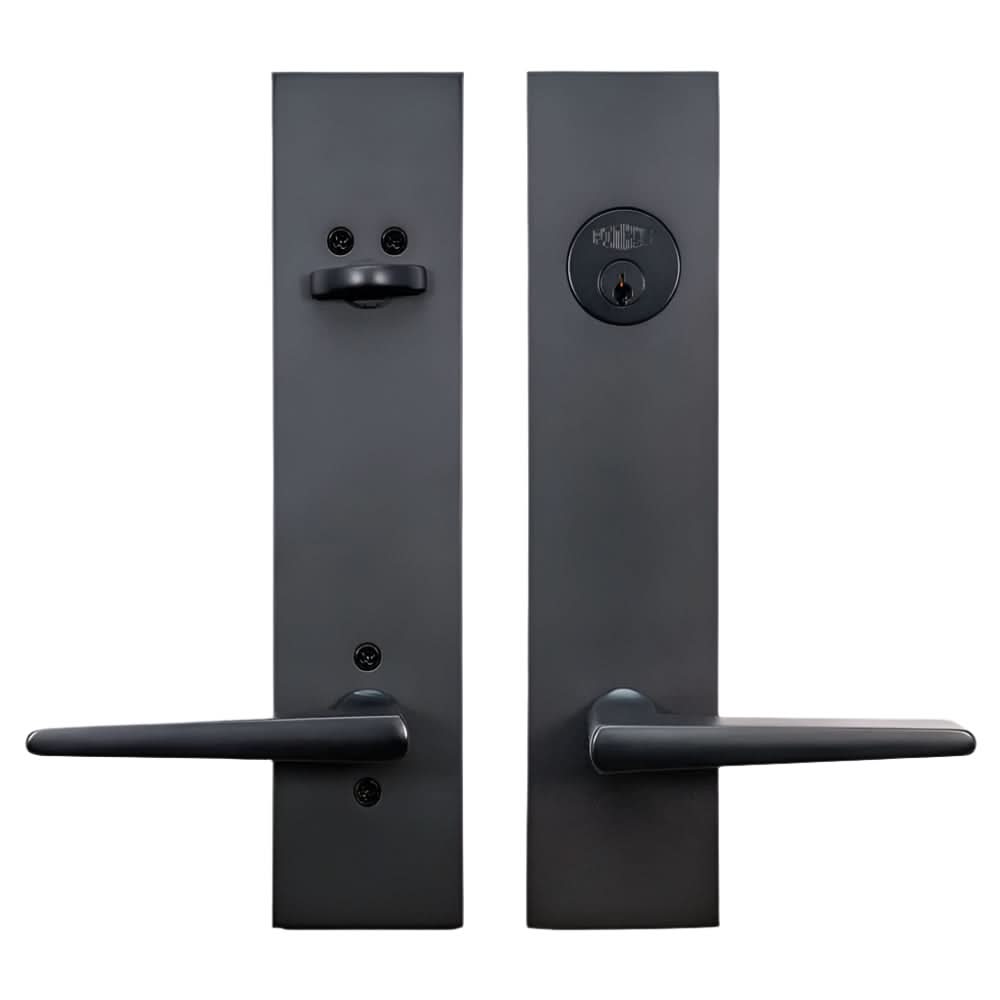

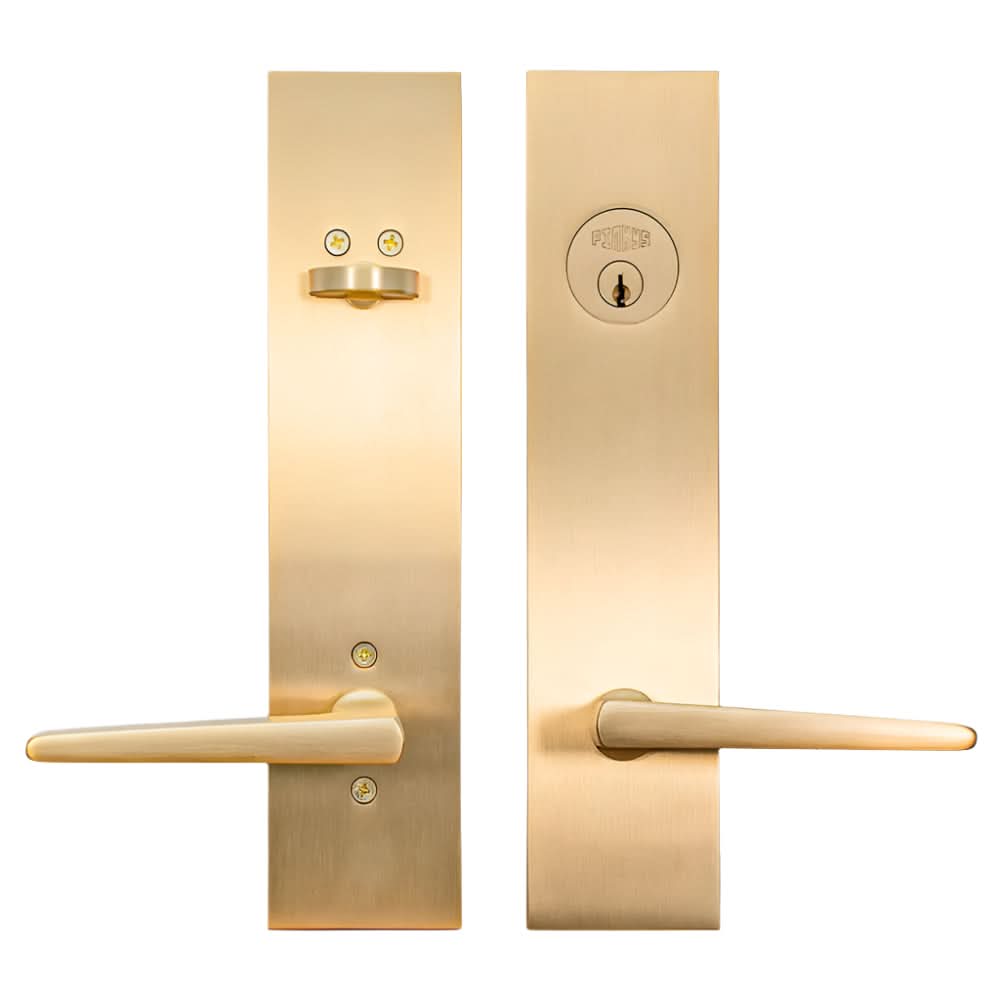

PINKYS Lock

for Exterior Doors

Our PINKYS Lock was made to perfectly complement our exterior Air Series door models. Each PINKYS lock is interchangeable, and can be made into a dummy lockset with the included blank cylinder plug. Lever handles are also interchangeable between left and right swings via a screw assembly accessible from the back of the lock plate.

Unless otherwise specified, our exterior Air Series door models will come standard with two pre-drilled bore holes on both the active and dummy door (double door only) leafs. Single and double door variants of our PINKYS Lock can be chosen via a dropdown menu on the lockset’s product page.

All locks are sold separately, and will need to be installed on site during your door installation. PINKYS is not able to pre-install locks as to avoid damages during transport.

You can find relevant specifications for our PINKYS Lock below.


PINKYS Lock Specs

Bore Hole Size: 2 1/8”

Backset: 2 3/4” or 2 3/8”

Door Thickness: 1 3/8” - 2 1/4”

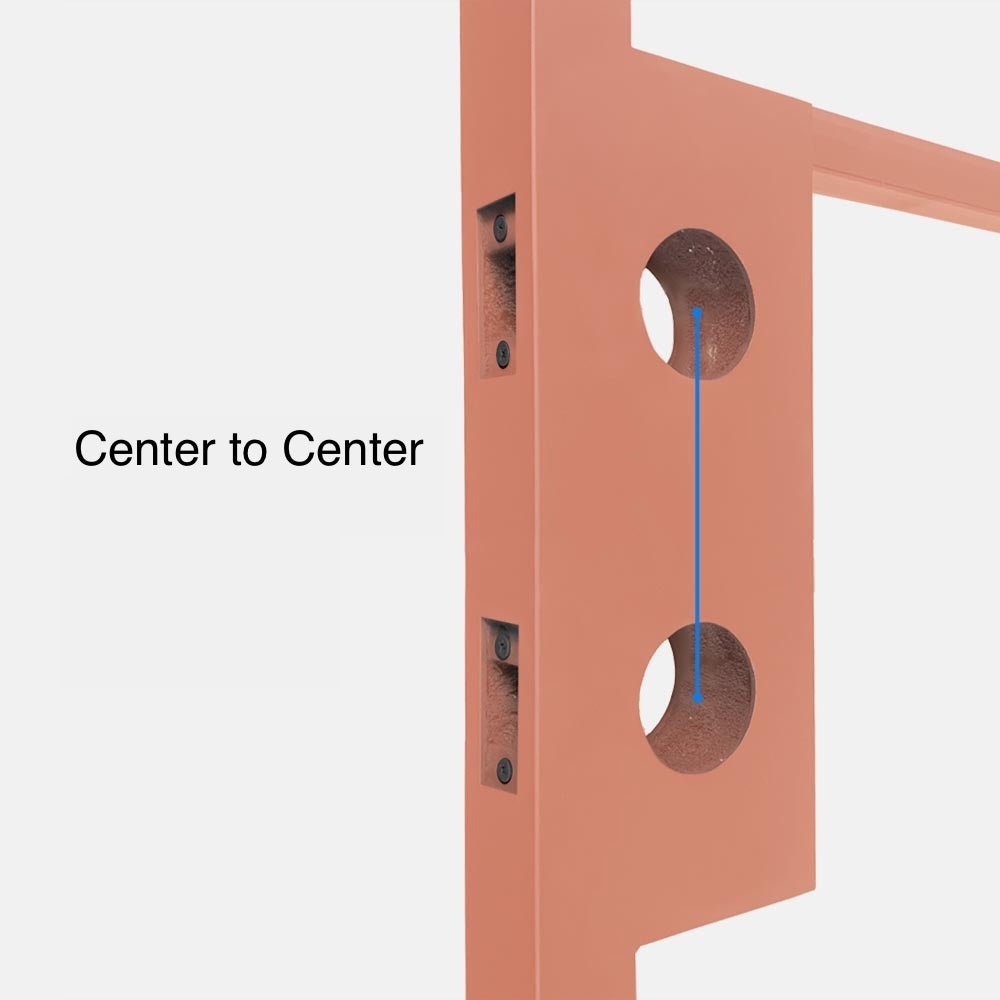

Center to Center: 5 1/2”

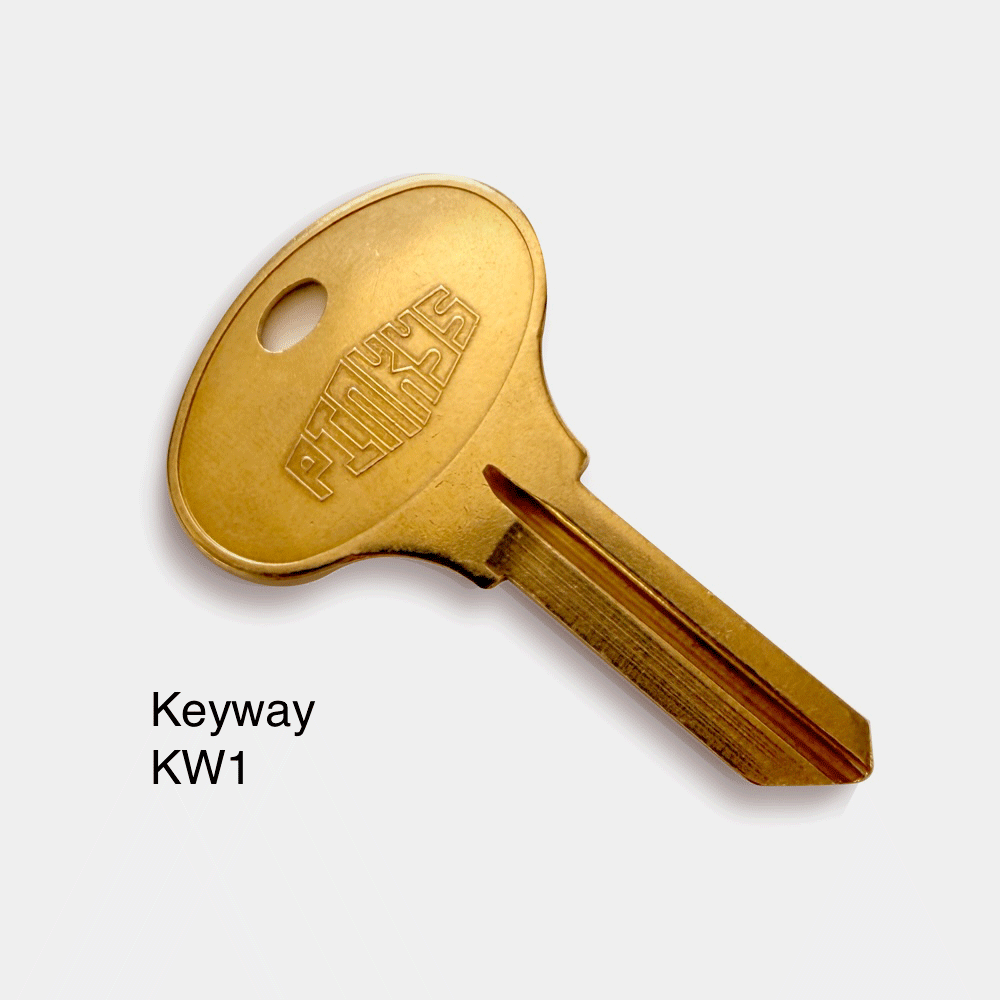

Keyway:  KW1

**Please note: Locks will not come keyed alike. They will need to be keyed on-site by a locksmith.

Compatibility

PINKYS Lock with Lever: Compatible with our full line of exterior Air Series doors (Excluding dutch, pivot, and sliding door models).

PINKYS Lock with Round Knob:  Compatible with our full line of exterior Air Series doors (Excluding dutch, pivot, and sliding door models), along with our full line of exterior Iron Doors.

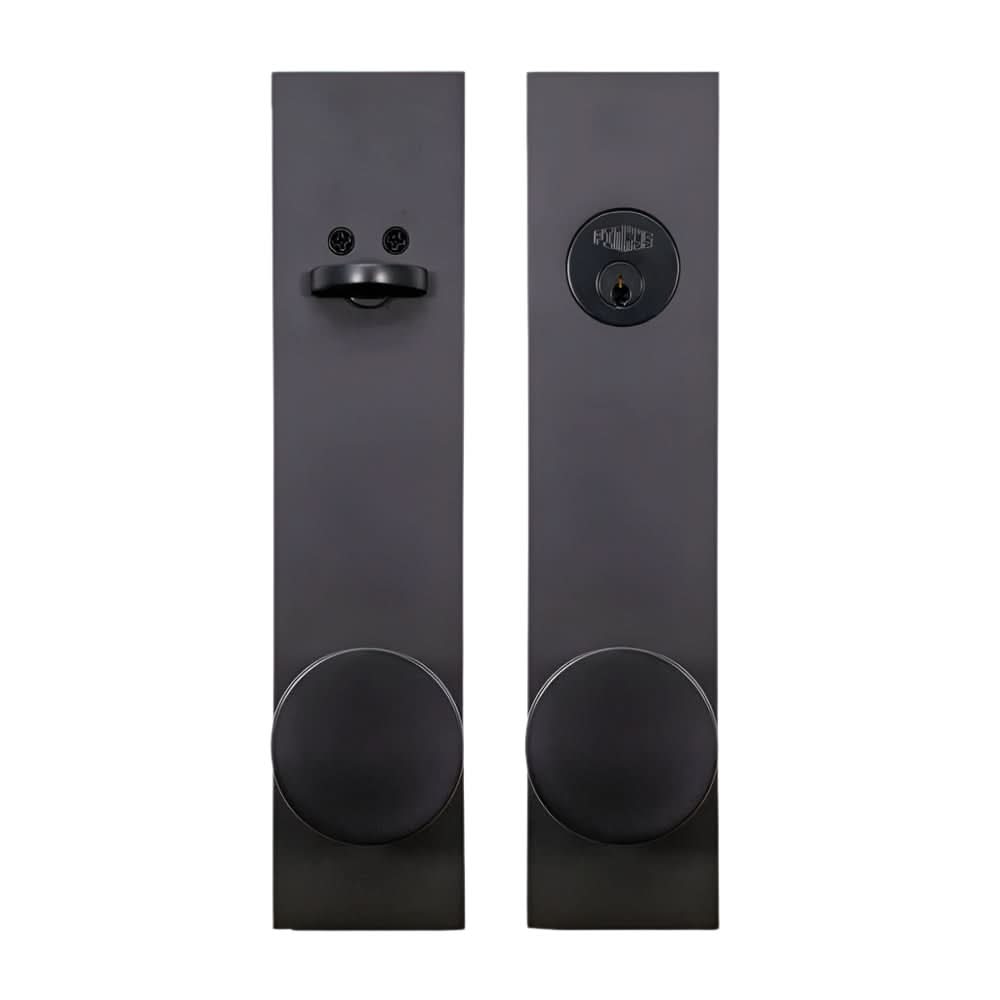

PINKYS Black Air Lock w/ Round Handle

**Please note: Custom made or clearance doors may be built to different specifications. Please consult with your custom door sales rep to confirm compatibility.
