Studio Steel · Ottostumm FerroFinestra W75 TB
Maximum glass, maximum thermal performance.

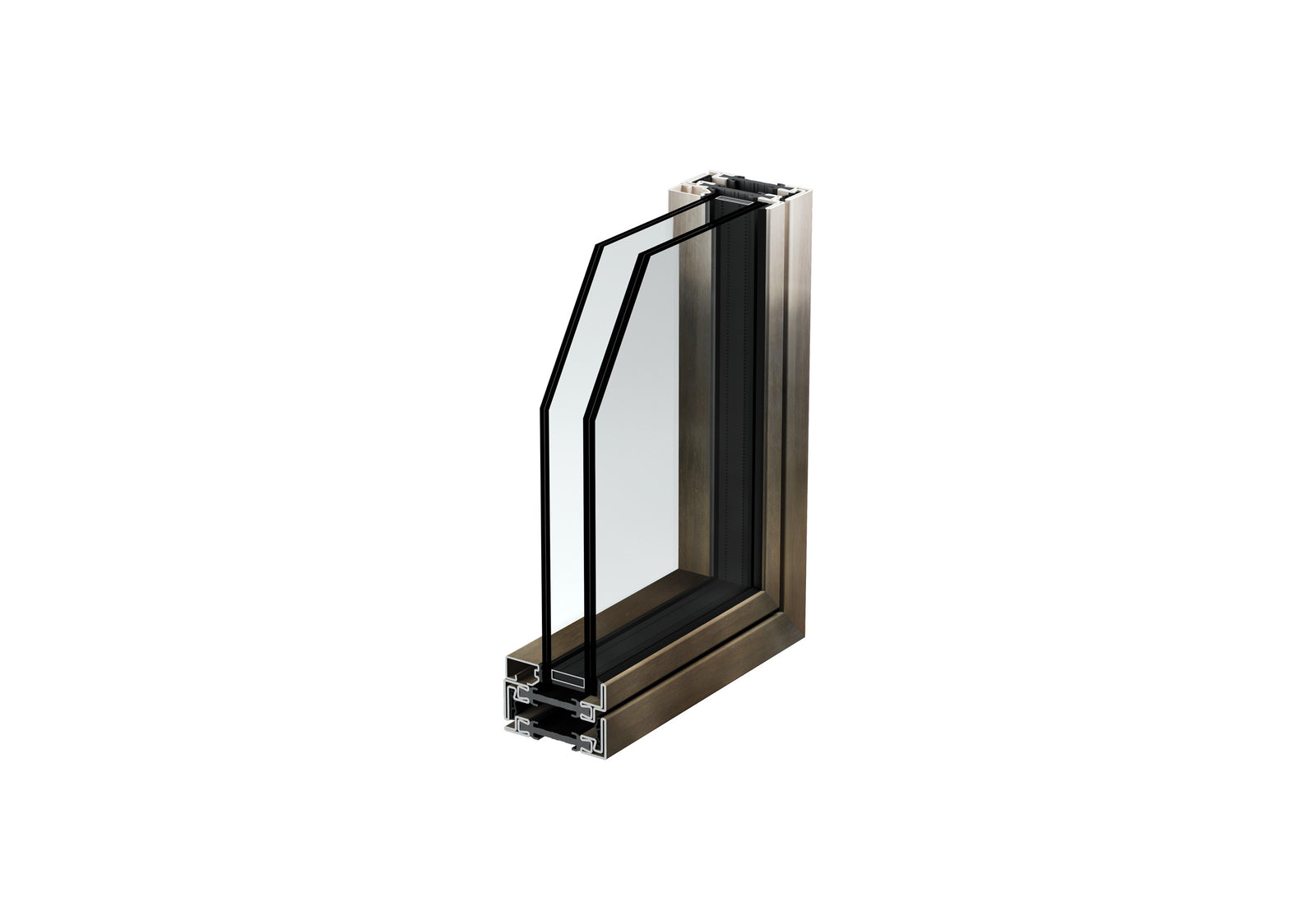

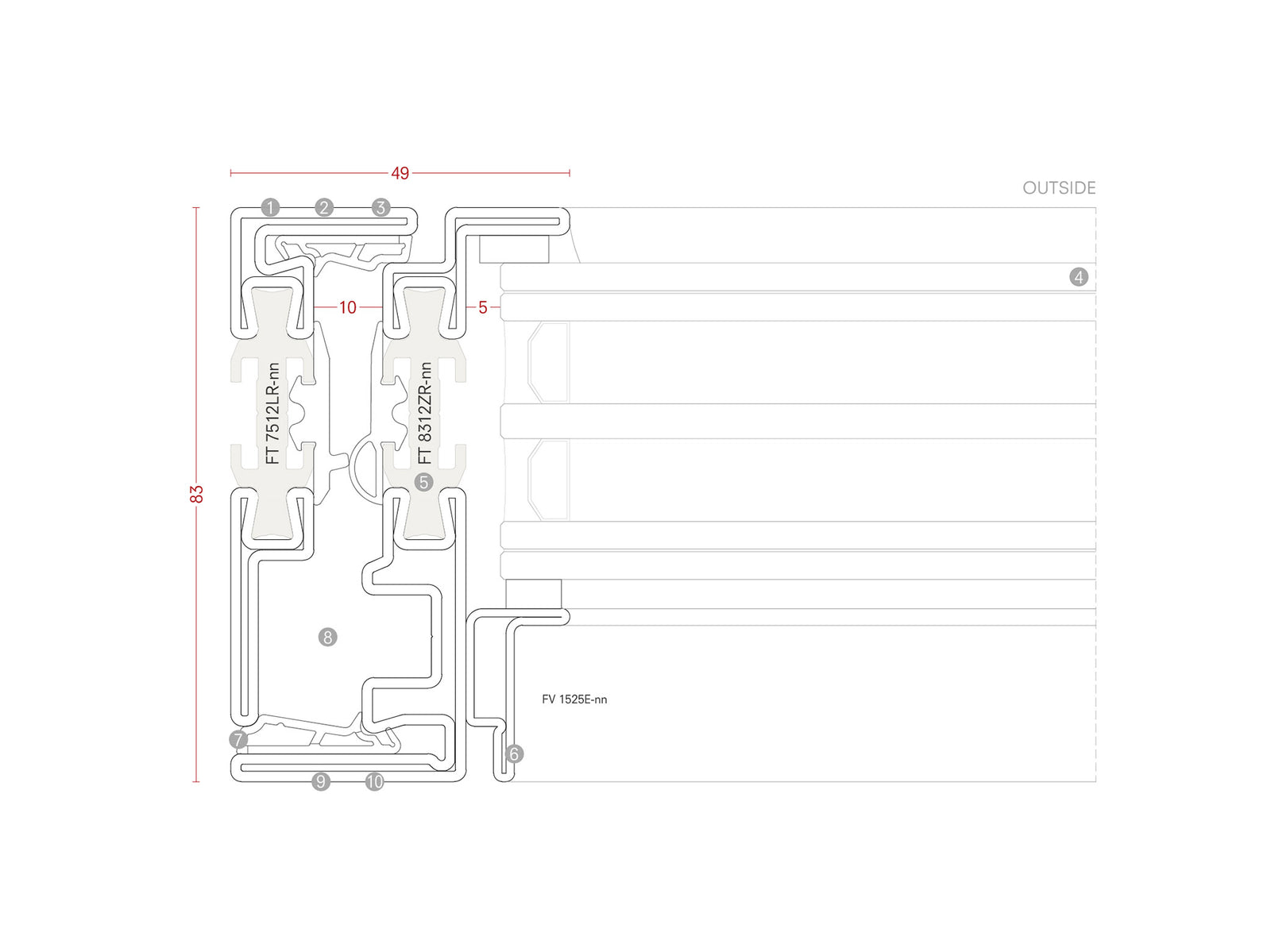

W75 TB Frame and Profile Data
US NFRC whole-window U-factor is project-specific. The PINKYS Studio Steel team provides certified figures for the climate zone and opening configuration.
| Steel Type | Glazing Capacity | Thermal Break | NFRC whole-window U-factor | Glazing options | Glazing Bead Options | Gaskets | Applications | Maximum Unit Sizing |
|---|---|---|---|---|---|---|---|---|
| 1.5 mm cold-formed, sharp-edged steel | Up to 58 mm unit thickness | Glass-fibre reinforced polyamide insulating core | Project-specific certified data on request | SB70; triple-pane IGU capable up to 58 mm; dual-pane with laminate available (not combined with triple-pane) | Rectangular, triangular, and double-L profiles; steel and aluminum | EPDM co-extruded sealing gaskets | Interior and exterior | Contact the PINKYS Studio Steel team |
Glazing Options Within the 58 mm Capacity
Glazing selection determines the final whole-window thermal value.
| Glazing Type | Notes |
|---|---|
| Triple-pane IGU | The 58 mm glazing pocket accommodates triple-pane insulating glass units at greater depth than the W50 TB's 37 mm capacity, supporting thicker spacer and gas-fill configurations. Both the W50 TB and W75 TB support triple-pane glazing. Confirm the specific IGU configuration with the Studio Steel team. |
| Double-pane IGU | Double-pane sealed units. A broad range of air fills, gas fills, and spacer configurations is available at the W75 TB glazing depth. |
| SB70 | High-performance low-e coating available in W75 TB double- and triple-pane configurations. Visit the glass options page for detail. |
| Dual pane with laminate | A dual-pane IGU with one laminated lite, for safety, acoustic, or security requirements. Available in PVB or SGP interlayer configurations. Not available as a triple-pane build-up; laminated glazing in the W75 TB is offered dual-pane only. |
W75 TB is available in eight opening configurations across windows, doors, and fixed glazing, the widest configuration set in the range. Flush and overlapping aesthetic options are available within the system.
Windows
Hinged window. Side-hung, top-hung, or bottom-hung. Flush and overlapping aesthetics.
Tilt-and-turn window. Tilts inward for ventilation or swings fully open.
Pivot window. Horizontal and vertical pivot configurations.
Fixed
Fixed glazing. Available as standalone or combined with operable units.
Doors
Hinged door (swing door). Single and French (double) configurations. Flush and overlapping aesthetics.
Pivot door. Centre or offset pivot. Contact the Studio Steel team for sizing parameters.
Sliding door. Single or multi-panel sliding configurations.
Bi-fold door. Multiple panel configurations. Contact the Studio Steel team for maximum span.
What the W50 TB does, at greater scale.
The W75 TB does what the W50 TB does and goes further: thicker glass, larger openings, and a higher-performing thermal break. Its glass-fibre reinforced polyamide insulating core spans larger openings and supports heavier glazing assemblies while maintaining thermal break integrity. The profile is also more structurally advanced: continuously laser-welded for higher mechanical performance than the W50 TB cast-in construction, with co-extruded EPDM sealing gaskets in place of the W50 TB mechanically fixed rebate gaskets, a more robust, durable seal against weather.
Flush or overlapping.
The W50 TB retains the classic double-overlapping FerroFinestra appearance, preserving the proportions of the original hot-rolled profile. The W75 TB adds internally flush, externally flush, and fully flush configurations alongside overlapping, giving a contemporary, minimal-reveal option the W50 TB does not offer.
A refined, modern counterpart to the hot-rolled profiles.
Where the hot-rolled W20 and W40 carry the warmth and irregularity of worked steel, the W75 TB cold-formed construction reads as precise and contemporary, a premium specification for projects that want thermally broken performance paired with a cleaner, more engineered look.
Tilt-and-turn in a thermally broken profile.
The W75 TB supports tilt-and-turn within the thermally broken range. A single sash tilts inward at the top for ventilation or swings fully open as a casement, a configuration common on commercial facades, high-occupancy residential, and any application where one hardware position operates two opening modes.
NFRC data, CAD drawings, hardware confirmation.
The PINKYS Studio Steel team works through the W75 TB specification one on one: climate zone, glazing configuration, opening sizes, and compliance path. PINKYS produces architecturally detailed CAD drawings for every opening.
